Wireless Mach3 MPG Pendant Handwheel for CNC Mac.Mach 3, 4 axis Wholesale Price (HandWheel 04)

Wireless Mach3 MPG Pendant Handwheel for CNC Mac.Mach 3, 4 axis Wholesale Price (HandWheel 04)
  • Продавецflimmer.com
  • Список ценUS $83.99piece
  • Продажная ценаUS $83.99piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,3 (146)

Oписание продукта

Package included:
  • 1 x 6 Axis MPG Pendant
  • 1 x USB receiver
  • 1 x CD (Mach3 Version3.043.066 & license, instruction)
  • 1 x English Instruction

Description:
  • The series of remote control, providing DLL library files for customers to carry out the 2 development, suitable for the customer\'s own a variety of numerical control system.
  • The series of remote control, based on the WINDOWS system.

Product features:
  • Radio frequency: 433 MHz,ISM,the Tx power is 10DB and the RX sensitivity is 98DB

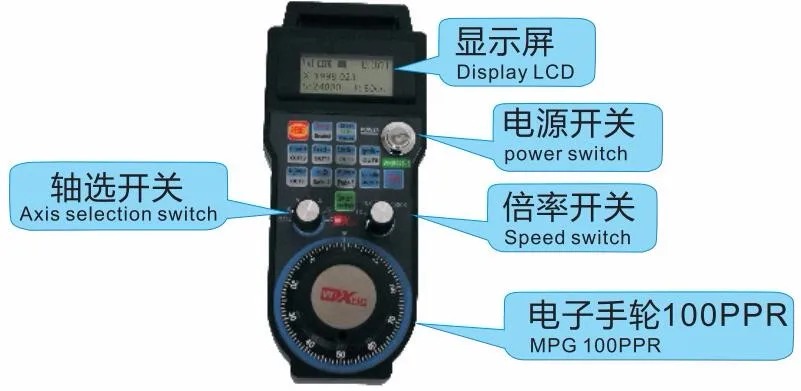

  • USB receiver 6 axes (X, Y, Z, A, B, C axis) with LCD display real-time display
  • Support 128*64 dot matrix input
  • Support 100PPR electronic hand wheel function.

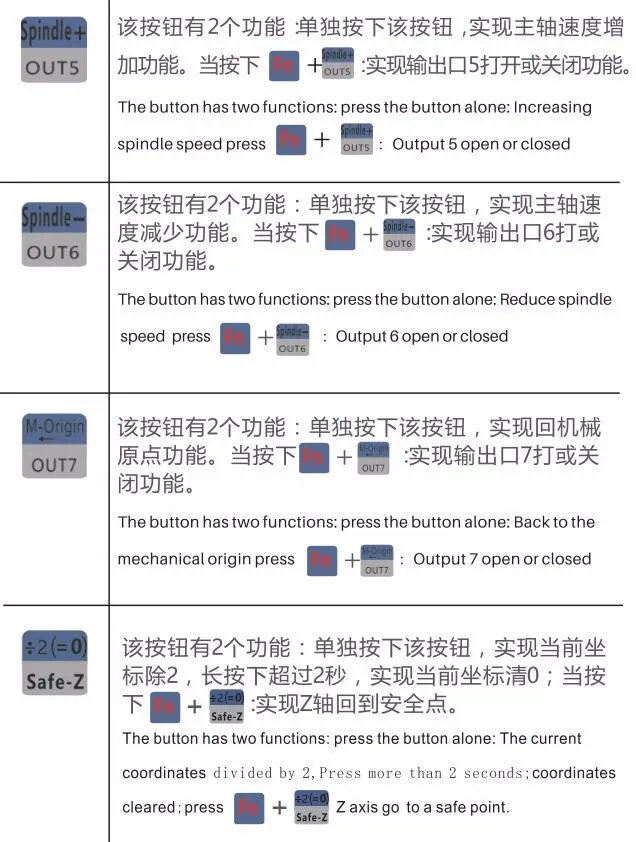

  • Support the 13 shortcut keys, the user is free to define the function
  • Wireless transmission distance of 40 meters
  • 64 channel frequency hopping transmission, strong anti-interference, stable and reliable; the channel gap is 1 MHz
  • Low power design, 2 AA battery for 1 months
  • Industrial grade design, dust proof design, stable and reliable

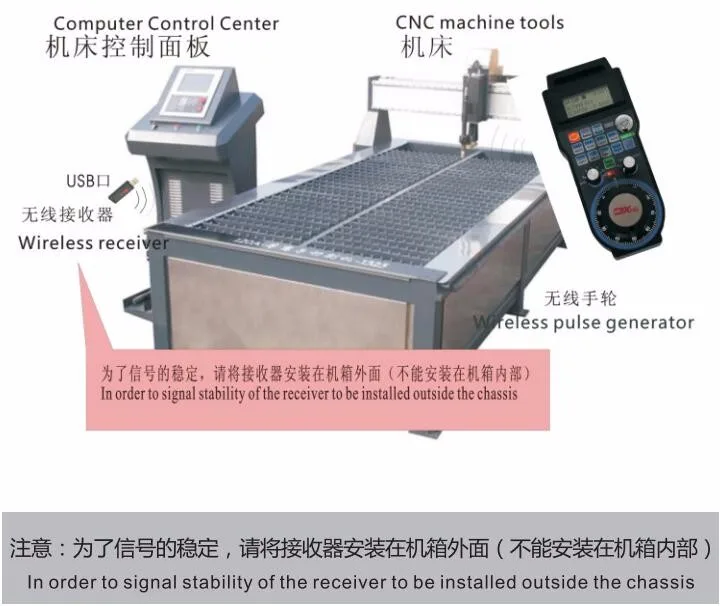

  • Applied to a variety of CNC systems, suitable for the use of the industry are: engraving machine industry, engraving and milling machine industry, CNC lathe industry, laser cutting machine industry, flame cutting machine industry, plasma cutting machine industry, automation production control industry.

Application:
This 6 axis controller could work with MK6 motion control card.


SM732-figure1SM732-figure1-1SM732-figure2SM732-figure3SM732-figure4SM732-figure5SM732-figure6SM732-figure7
