GRBL 1.1 USB Port CNC Engraving Machine Control Board, 3 Axis Control,Laser Engraving Machine Board

GRBL 1.1 USB Port CNC Engraving Machine Control Board, 3 Axis Control,Laser Engraving Machine Board
  • Продавецflimmer.com
  • Список ценUS $25.33piece
  • Продажная ценаUS $25.33piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,1 (623)

Oписание продукта

sm777-2

Package included:

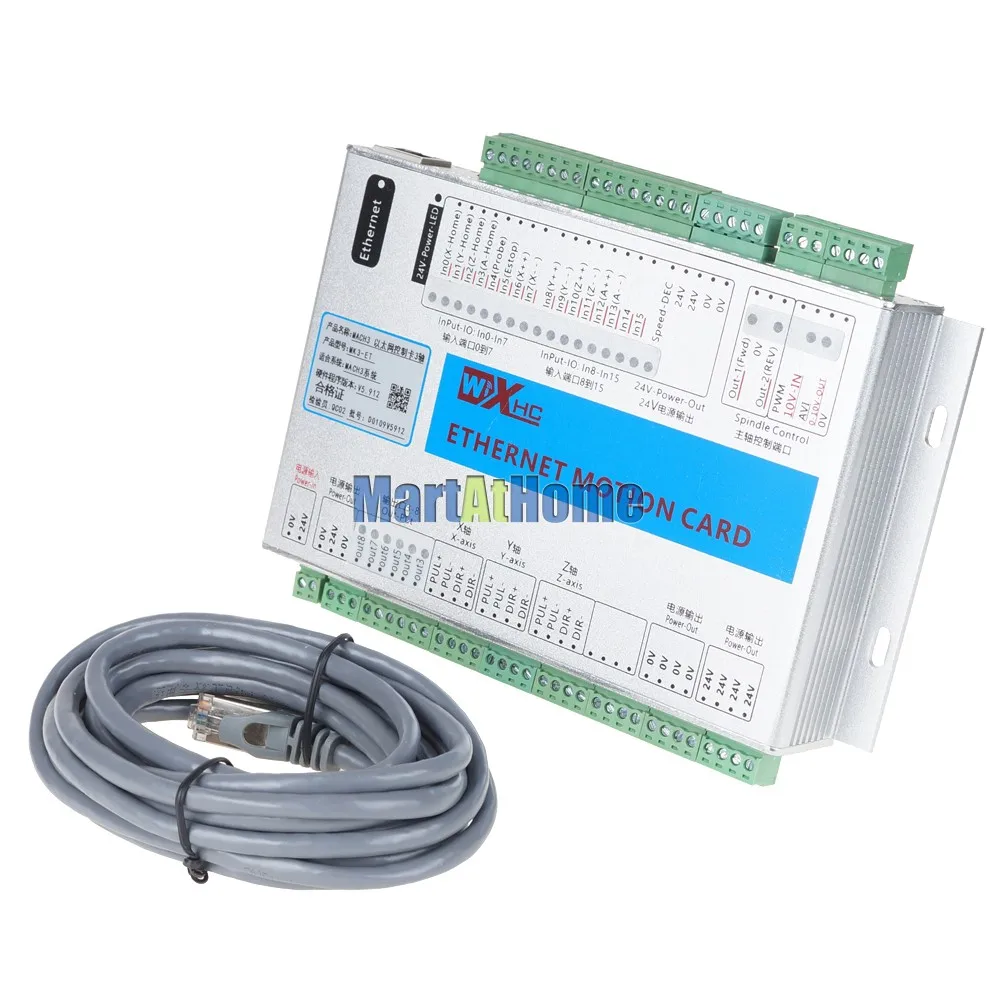

  • 1 x 3 axis motion control card
  • 1 x USB cable
  • 1 x Instructions
  • 1 x CD (instructions,Mach3)



Features:

  • Fully supporting all Mach3 versions, support Windows 7, 8, 10 (32-bits);
  • Only support Ethernet interface, need to set IP address (Please read page 20 on the instruction);
  • Supportsave data when power off, support resume from breakpoint;
  • Support spindle speed feedback;
  • Supports spindlePWMspeed control output;

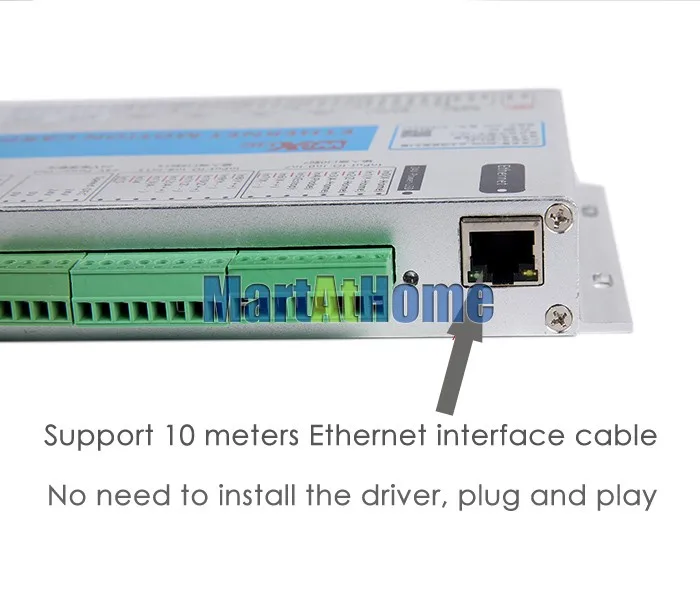

  • Support 10 meters Ethernet interface cable;
  • No need to install the driver, plug and play;
  • Supports3-axis linkage;

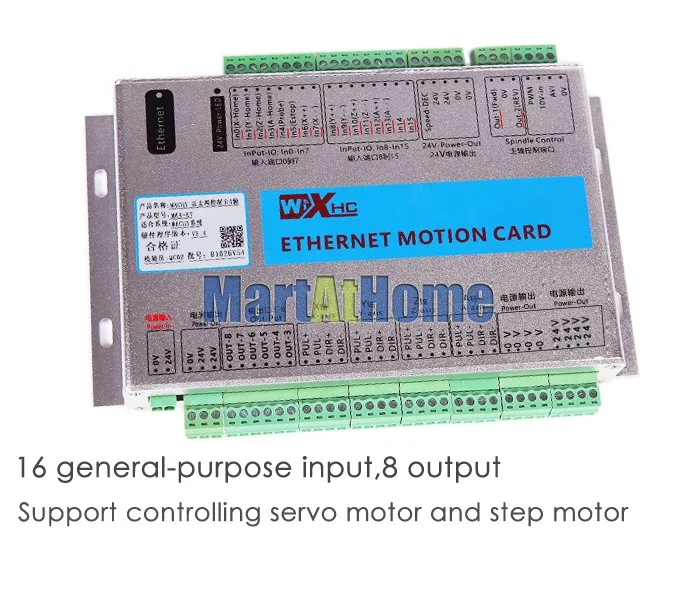

  • Maximum step-pulse frequency is2000KHz, 16 general-purpose input,8 output;

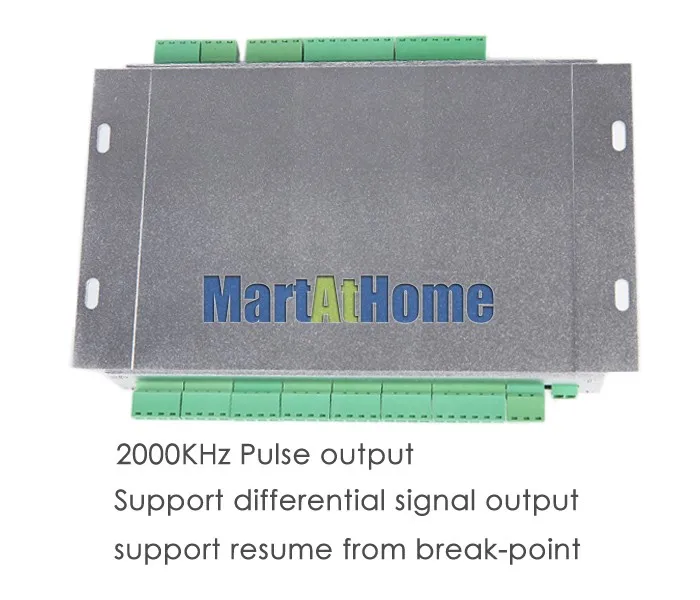

  • Support differential signal output;
  • Velocity feedback function, Spindle speed display in real time all IO-port isolation, interference, stable performance;
  • Support controlling servo motor and step motor;

SM640-compare

Application:

This mach3 motion control card has successfully been used to control the following types of equipment:
  1. Lathes
  2. Mills
  3. Routers
  4. Lasers
  5. Plasma
  6. Engravers
  7. Gear cutting

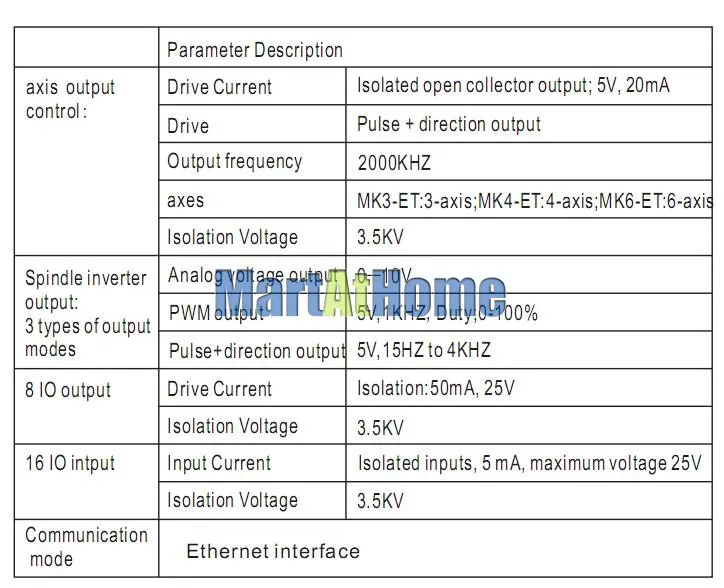

Electrical Characteristics:

sm779-figure1

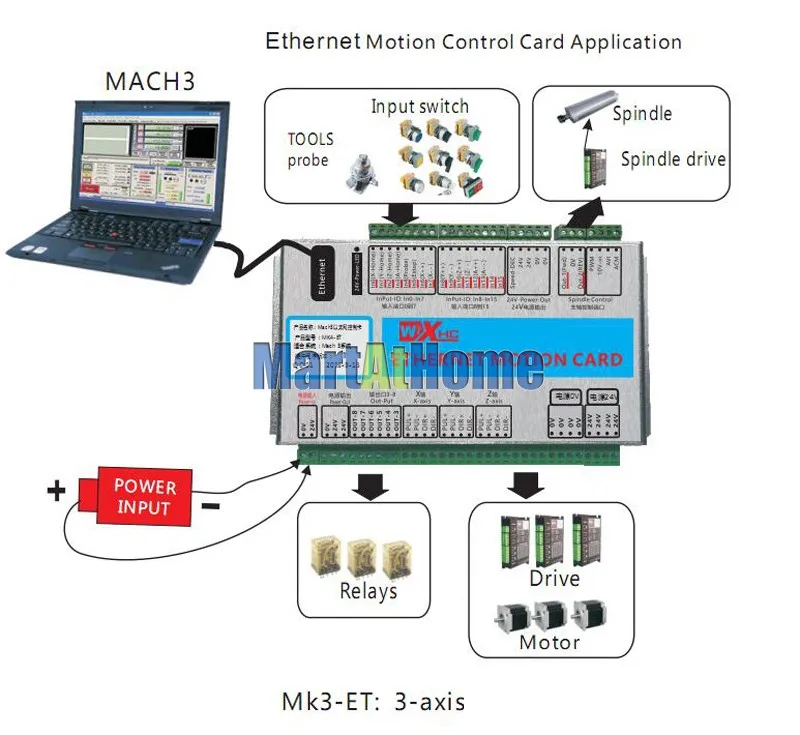

Application Connection Diagram:

sm777-figure2

Signal Description:

sm777-figure3



Wiring diagram shows:

NOTE: If the inverter is turned on, the control card is not working properly because of interference caused by the inverter; Replace inverter.

sm777-figure4

sm778-2sm778-3sm778-4sm778-5
