UV 6100S Ultraviolet/Visible Spectrophotometer Wavelength UV Photometer Range 190 1100nm Bandwidth 0.5/1.0/2.0/4.0nm

UV 6100S Ultraviolet/Visible Spectrophotometer Wavelength UV Photometer Range 190 1100nm Bandwidth 0.5/1.0/2.0/4.0nm
  • Продавецflimmer.com
  • Список ценUS $7309.15piece
  • Продажная ценаUS $7309.15piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,8 (974)

Oписание продукта

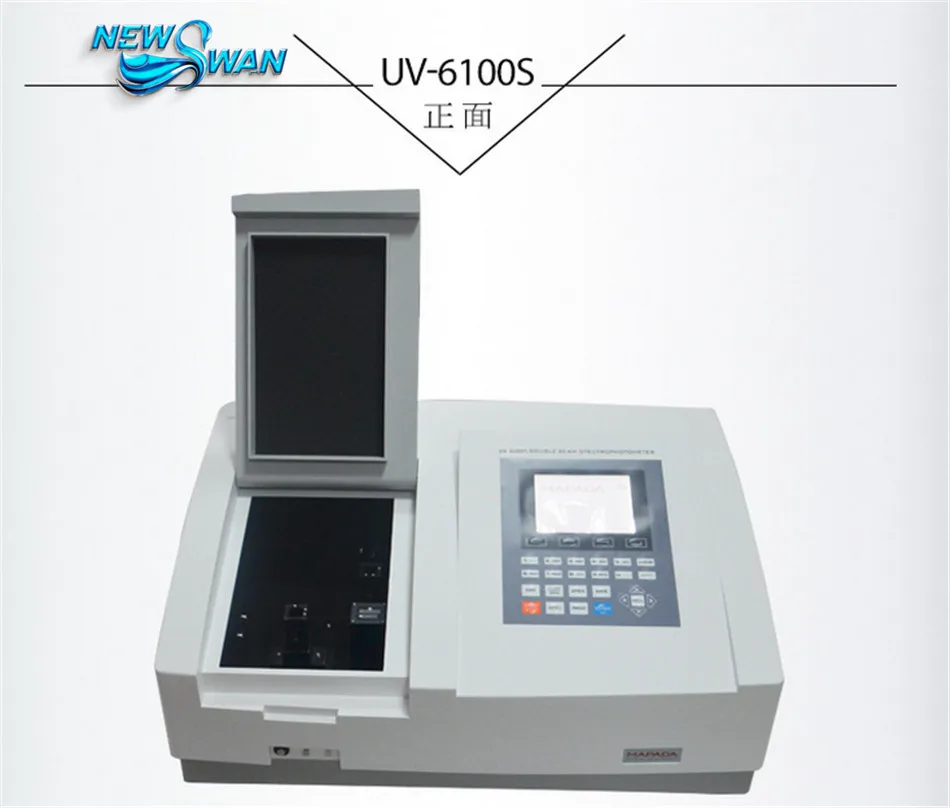

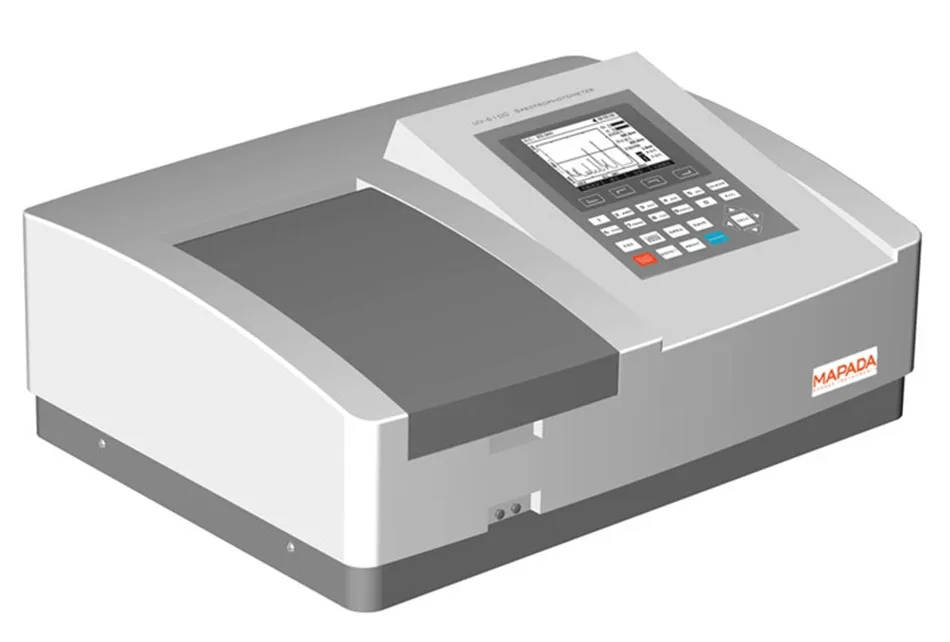

High grade UV-6100S Ultraviolet/Visible Spectrophotometer Wavelength Range 190-1100nm Bandwidth 0.5/1.0/2.0/4.0nm



01

QQ20170808160601QQ20170808160036QQ20170808160611

001

Features


  The innovative optical layout and state of art mono-chromator with high grade blazed holographic grating ensure accuracy. Its integrated design assures long term stability and durability.
 The precisely aligned detector and quality deuterium and halogen lamps enhance the precision across the UV/vis spectrum starting from 190nm and into the near-infrared 1100nm.
 Online software upgrade capability via Internet(for stand-alone models)
 Full A4 print-out of graphs and tables of results with popular inexpensive printers such as HP or Epson Deskjet.
 Real-time clock for date and time stamping of results
 Large LCD display (320*240 Dots Matrix)


Specifications

 Model
UV-6100S
 Wavelength Range
190-1100nm
 Bandwidth
0.5/1.0/2.0/4.0nm
 Wavelength Accuracy
±0.3nm
 Wavelength Repeatability
0.2nm
 Photometric Accuracy
±0.3%T
 Photometric Repeatability
0.2%T
 Photometric Range
-0.3-3A,0-200%T,0-9999C
 Stability
± 0.002A/h @ 500nm
 Baseline Flatness
± 0.001A/h
 Noise
 ± 0.001A/h
 Stray Light
≤0.05%T @ 220nm,360nm
 Data Output Port
USB
 Printer Port
Parallel Port
 Display
320*240 Dots LCD
 Lamps
D2  Lamp & W  Lamp
 Detector
Silicon Photodiode
 Power Requirements
AC   220V/50Hz or  110V/60Hz
 Dimension
625*430*206mm
 Weight
28kg

03HTB1.3jYRXXXXXb9XFXXq6xXFXXXV
