2 CH Video Fiber Optical Media Converters 2 BNC Transmitter Receiver RS485 Data Single mode 20Km For CCTV Surveillance system

2 CH Video Fiber Optical Media Converters 2 BNC Transmitter Receiver RS485 Data Single mode 20Km For CCTV Surveillance system
  • Продавецflimmer.com
  • Список ценUS $57.66piece
  • Продажная ценаUS $57.66piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,9 (932)

Oписание продукта









If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
 more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount.

ZY-STF502 HD SDI Over Fiber Optic Media BNC Converter 1080P No Losss Delay HD SDI Optical Video Transmitter Receiver Over Fiber

2

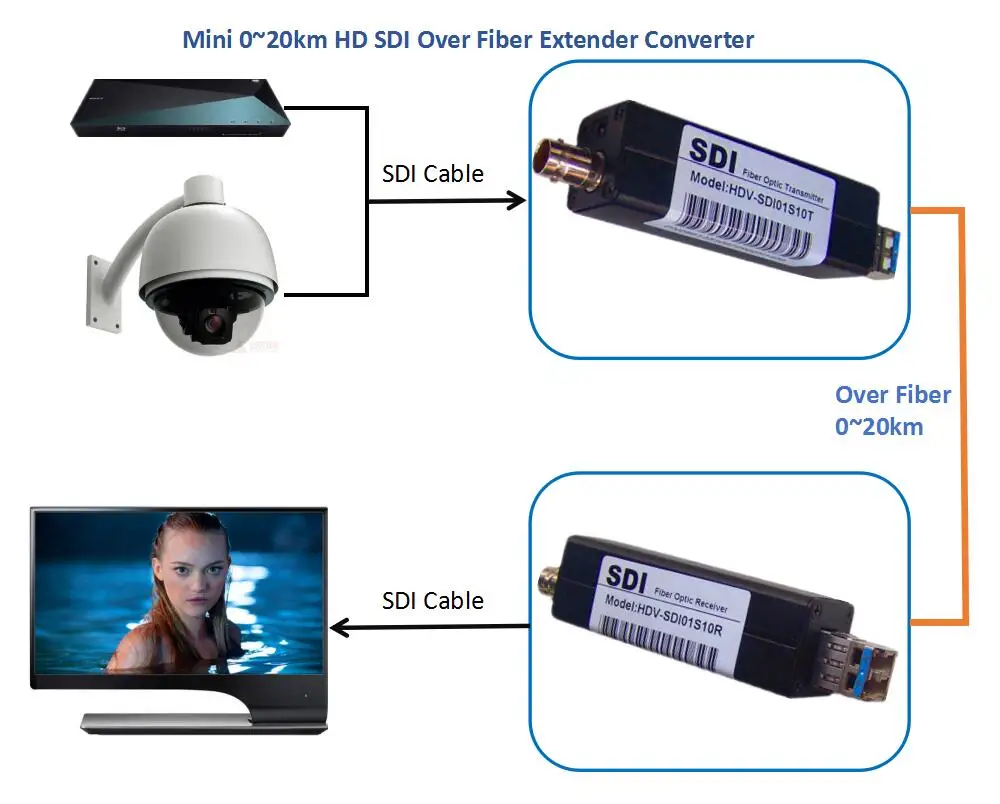

ZY-STF502,Today\'s digital studios use a serial digital interface (SDI) -based transmission system that transmits uncompressed digital component video signals as well as digital audio signals. The HD-SDI optical design and production is suitable for the television industry, high reliability, high-performance serial digital optical transmission equipment. HD-SDI optical transceiver meets the business requirements of DVB backhaul and production, field production, DVB-ASI transmission, news gathering, live signal transmission, remote studio, general digital video transmission service and telecommunication signal transmission. Signal format from 19.4Mbps to 2.97Gbps, the system supports SMPTE424M, SMPTE292, SMPTE295M, SMPTE297M, SMPTE305M, SMPTE310M and DVB-ASI (EN50083-9) and other digital TV format signals to meet the requirements of industrial products.ZY-STF502(9)

3

  • Transmit HD SDI video audio signal up to 20km over fiber optical cable;
  • Support the resolution is up to 1920x1080@30Hz;
  • Uncompress,No loss,No delay;
  • The operating range is from 270Mb / s to 1.485Gb / s;
  • Clock recovery for SMPTE 292M (1.485Gb / s);
  • Supports SMPTE 305M (SDTi), SMPTE 344M (540Mb / s), M2S and DVB-ASI (270Mb / s) standards;
  • 120m automatic cable equalization for all speeds up to 1.485 Gb / s (Belden 1694A);
  • The LED status indicators monitor key parameters;
  • Support hot-swappable;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug and play

4

Serial TV                                                             BNC input / output
TV signal standards                                           SMPTE 424M, SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-                                                                                SSI and other Telecom / Datacom rates (270Mb / s - 1.485Gb / s)
Enter the number                                               1 Road
Reflection loss                                                   > 15DB
Equalization                                                       > 100M @ 2970Mbps, Belden 1694A cable
                                                                            > 200m @ 1485Mbps, Belden 1694A cable
                                                                            > 350m @ 270Mbps, Belden 1694A cable
Connector                                                          75Ω BNC
Optical fiber                                                       Fiber  input / output
Number of outputs                                             1
Cable transmission type                                  single-mode single-fiber (multi-mode optional)
Working wavelength                                        1310nm / 1550nm
Jitter                                                                   <0.2UI
Connector                                                         LC / PC (ST / PC optional)
Number of outputs                                           1 HDSDI output at the receiver
Signal level                                                       800mV nominal
Rise / fall time                                                  200ps nominal
Overshoot                                                        <10% amplitude
Working temperature                                     -25 ℃ ~ +70 ℃
Power supply voltage                                    1A @ 12VDC
Power consumption                                       2W
EMI / RFI complies with FCC Part 15 Class A, EU EMC Directives
Mean time between failures> 100,000 hours
ZY-STF502(9)ZY-STF502(11)ZY-STF502(7)ZY-STF502(6)ZY-STF502(2)ZY-STF502(3)ZY-STF502(8)ZY-STF502(5)ZY-STF502(4)HD_1080P(HDCPApplication(1)
