New Outdoor CCTV Security AHD 1080P 2.0MP Mini Waterproof Dome PTZ Camera 3X ZOOM 2.8 8mm Lens Auto Focus PanTilt Rotate Camera

New Outdoor CCTV Security AHD 1080P 2.0MP Mini Waterproof Dome PTZ Camera 3X ZOOM 2.8 8mm Lens Auto Focus PanTilt Rotate Camera
  • Продавецflimmer.com
  • Список ценUS $75.88piece
  • Продажная ценаUS $75.88piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,6 (708)

Oписание продукта

auto-tracking-405_01
Summary:

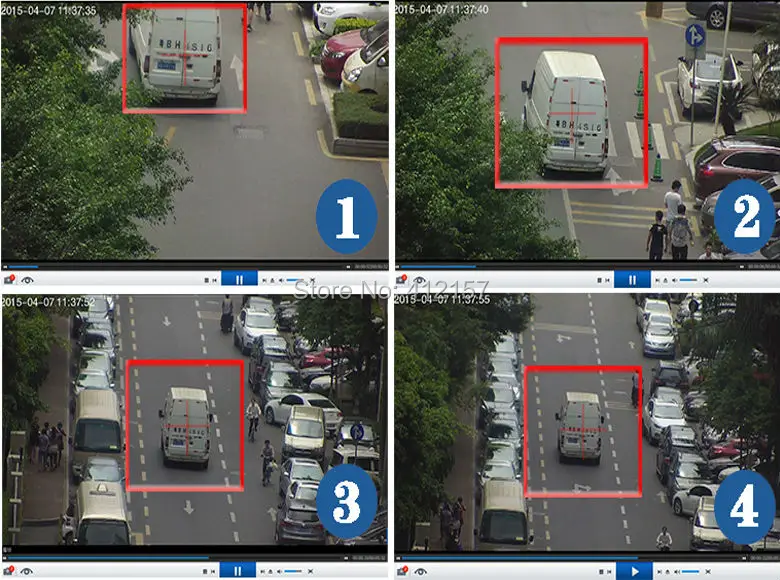

This HD IP Speed dome auto tracking PTZ camera does not require external/other device. The camera will automatically focus and zoom into the center of the image when a moving object is captured which makes it easy to identify a suspect

●Adopt HI3516D chip, 2.0MP SONY CMOS sensor, easy to capture clear video.
●20X Optical zoom(5.4-108mm),16X digital zoom.
●Suport quad-stream, H.264 comprehension. Multi level video quality configuration

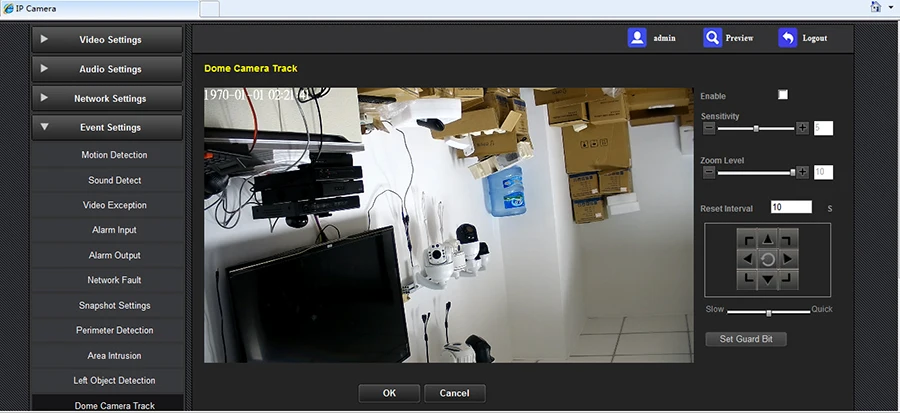

●Support 3 auto-tracking modes
  1.Cruise tracking;
  2.Individual preset tracking;
  3.Direct-start Auto tracking;
●Support 4 intelligent analysis
  1.Preset tracking
  2.Line tracking
  3.Patrol tracking
  4.Perimeter tracking
●With audio in + DC out, no need to power microphone separately when using POE option.
●Support POE
●Support 3D positioning.

Product Description

HD IP Smart PTZ Dome Camera(Smart PTZ for short) is a new tech Intelligent PTZ camera, built-in online remote view & control function, Video Server function and combined normal PTZ camera’s function. It is easy to install and operate, no need complicated wiring work.

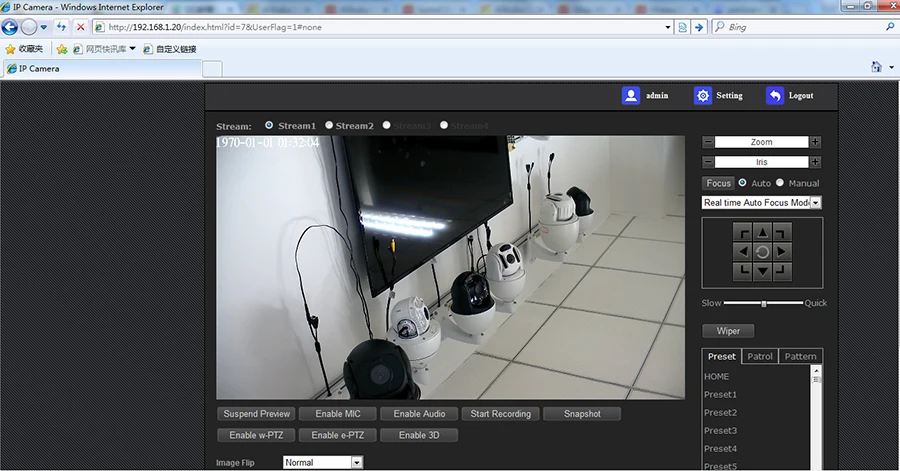

Smart PTZ not only has all normal functions of analog PTZ camera, but also based on Ethernet control, you can set the parameters and enable specific functions through Internet Explorer Browser.

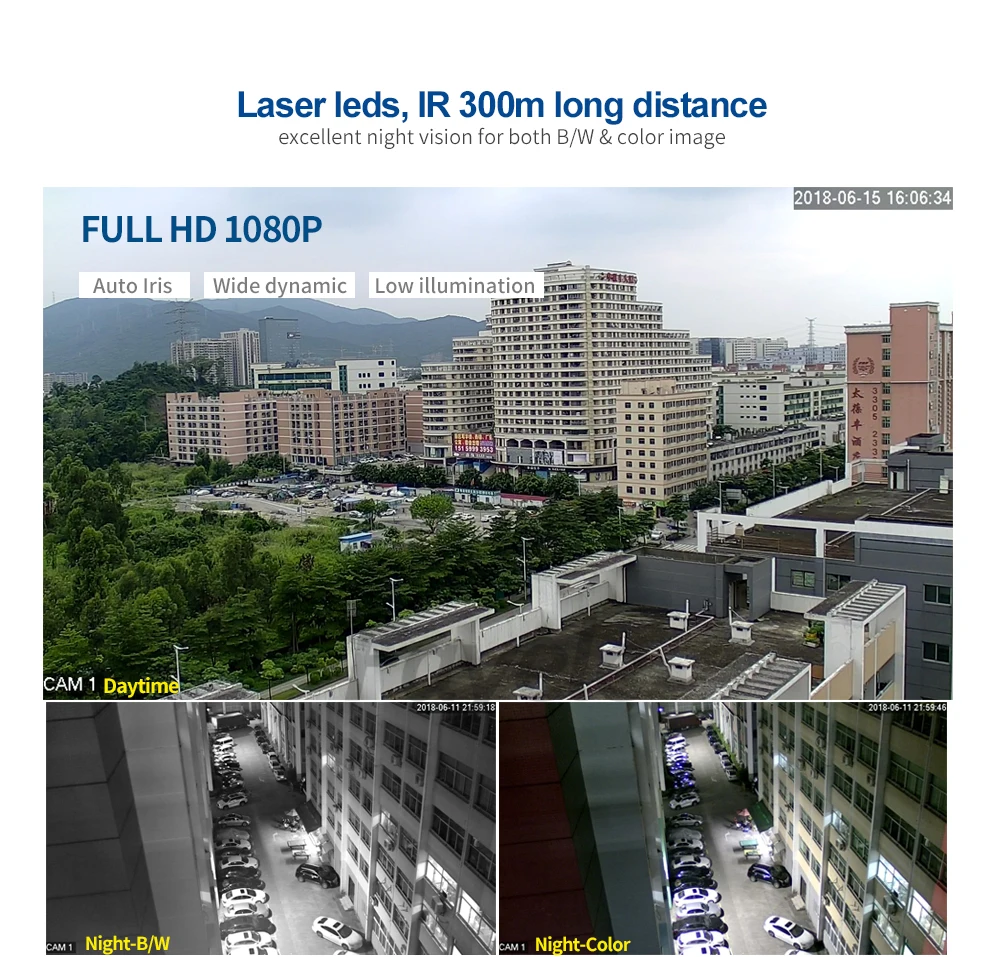

  • 4pcs High quality array LEDs, 2pcs laser LEDs, auto-switch to long/middle/close distance focus, 100M IR distance.
  • High performance encoding scheme, with 2.0MP progressive scan CMOS image sensor to  capture clear and dynamic picture.
  • Support auto-balance, auto-focus, auto-explosure, automatic noise reduction, automatic contrast enhancement.
  • Full capacity for ONVIF protocol and GB/T28181.
  • Precision motor drive, sensitive response, smooth operation, accuracy error is less than 0.1 degrees, image no jitter at any speed.
  • Using a high-performance platform, stable and reliable performance, support dual stream support H.264 video compression algorithms, support multiple levels of video quality configuration.
  • Built-in against-surge and lightning protection device, effectively preventing damage from 4000V instantaneous current.
  • HD IP 1080P High speed dome PTZ camera, P2P Function.

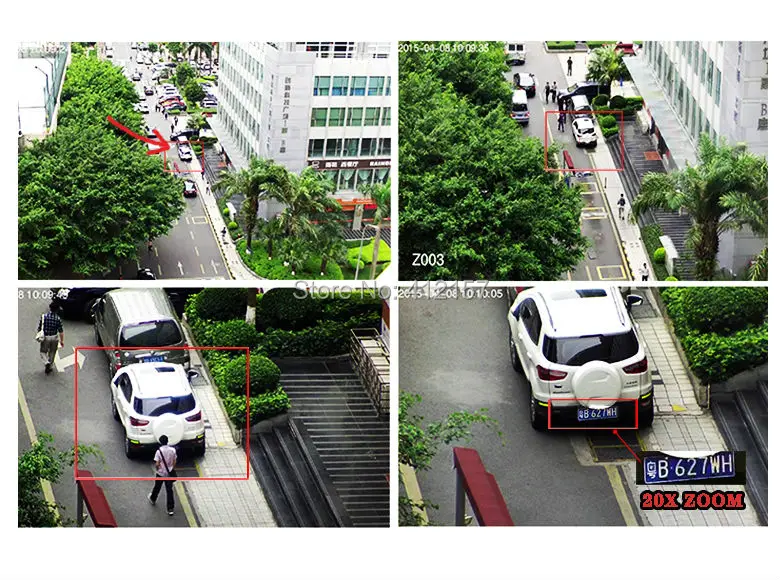

  • With 20X optical zoom + 16X digital zoom = 36X ZOOM
  • With POE function
  • Please note: this camera is not with phone APP.  if you want P2P(Phone APP, you can connect it to NVR and use NVR APP to access it)

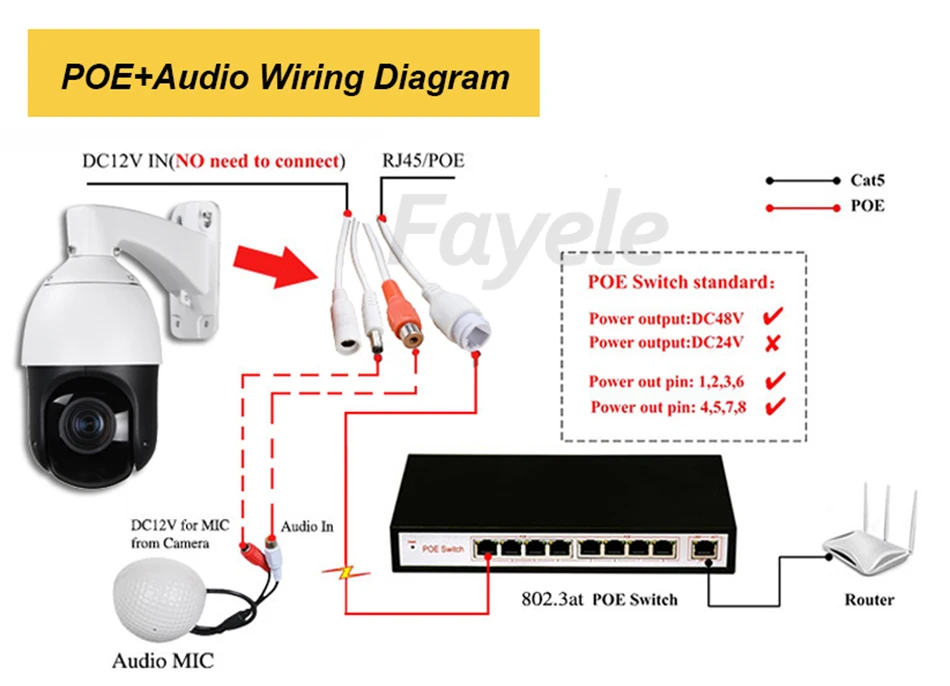

auto-tracking-405_024in1-_07405 POE Diagram

Parameters

Model

NDR-405-BGJ2/T

Camera Specification

Image Sensor

1/2.8"  CMOS 3516D+SONY IMX322

Minimum Illumination

Color: 0.05Lux, B/W: 0.01Lux, 0Lux with IR

3D DNR

Support

WDR

1/7.5s--1/2000s,AUTO

Electronic Shutter

Support

Day&Night mode

Auto ICR Color to Black

Focus Length

5.4-108mm, 20X Optical Zoom, 16X digital zoom

Maximum Image

1920x1080

Main Stream

25fps: (1920x1080)

(1280×960), (1280×720), (800×600)

Sub Stream

25fps: (704×576), (640×480), (648×360)

Video Compression

H.265、H.264_BASELINE H.264_Main profile

Network Protocol

HTTP ,FTP,SMTP,UPnP,SNMP,DDNS,NTP,RTSP,RTP,TCP

DHCP,PPPoE

Ethernet

ONVIF 2.0, GB/T.28181

Pan/Tilt

IR Distance

100M

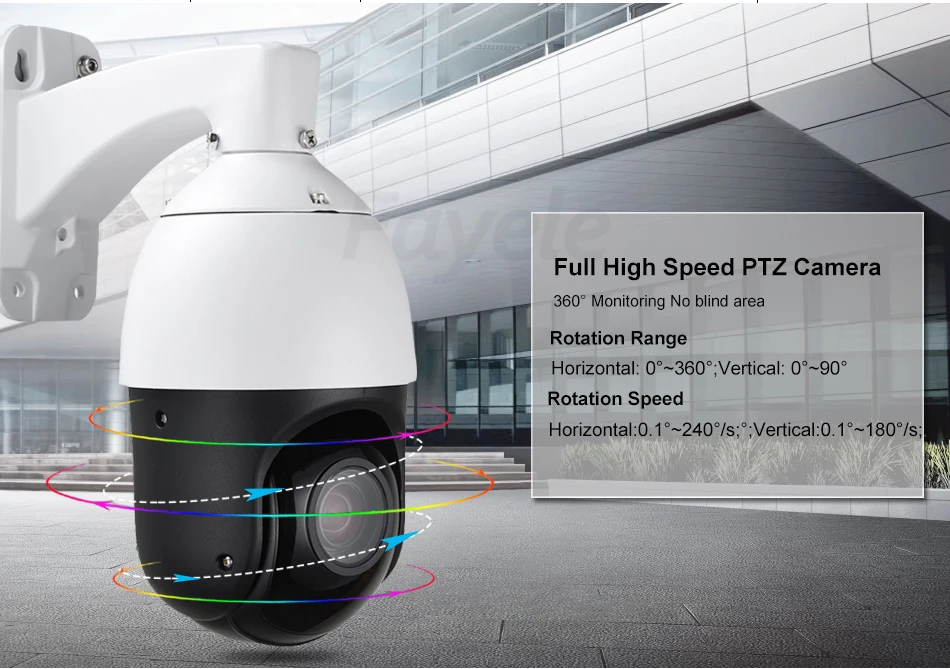

Horizontal Range

0°~360°Continuously

Vertical Range

0°~90°(Auto Flip)

Horizontal Speed

0.05°~240°/s

Vertical Speed

0.05°~180°/s

Max Speed

100°/S(Preset Speed)

Preset

255

Patrol Track

4 path, each path can add 10 presets

Left-right scan

1 path

Horizontal scan

1 path

Electric action

Watch position/left-right scan/horizontal 360°scan/patrol scan

Free action

Watch position/left-right scan/horizontal 360°scan/patrol scan

Watch position

1

Other

Power

Standard DC 12V

Consumption

<25W

Working Environment

Tempreture-20~60 degrees; Humidity<90%

Protection grade

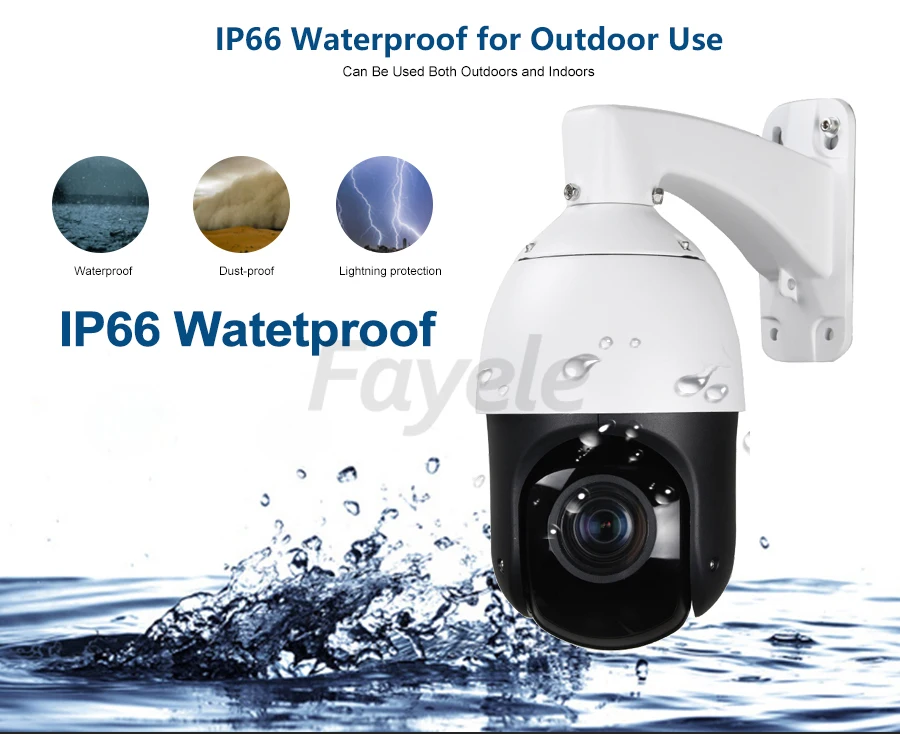

IP66, 4000V Lightning protection, against-surge

Weight

2.5kg



601-BGJ2_06601-BGJ2_07601-BGJ2_08601-BGJ2_09

Package Contents

  • 1 x 4" POE 1080P Auto Tracking PTZ Camera
  • 1 x Wall Mount Bracket  (If you need ceiling mount bracket please leave a message)
  • 1 x Power Supply
  • 1 x User Manual
