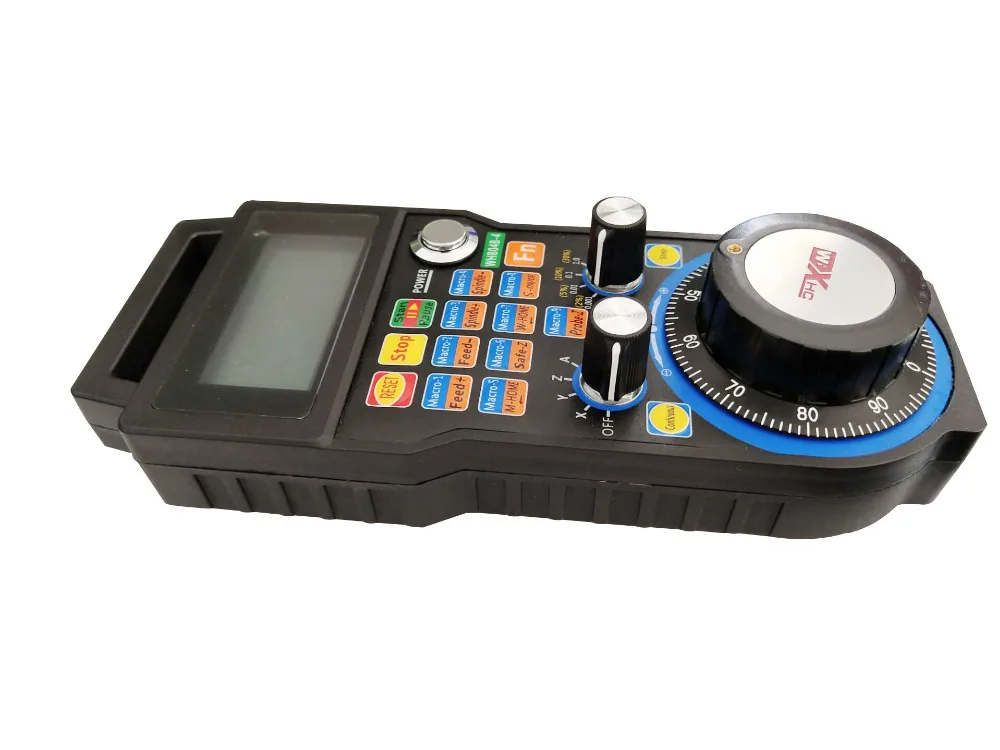

Wireless handwheel Mach3 MPG Pendant Handwheel for CNC Router Mac.Mach 3, 4 Axis

Wireless handwheel Mach3 MPG Pendant Handwheel for CNC Router Mac.Mach 3, 4 Axis
  • Продавецflimmer.com
  • Список ценUS $88.78piece
  • Продажная ценаUS $88.78piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,4 (163)

Oписание продукта

Parameter:

  1. Radio Frequency:433MHZ,ISM,the Rx Power is 10DB and the RX sensitivity is 98DB
  2. The RF has 64 channels,the channel gap is 1Mhz
  3. Using Frequency Hopping,stable and reliable
  4. Hopping transmission technology,can support 64 Sets of equipment,each other is not affected
  5. 100PPR manual pulse generator,support 10 macro function button
  6. LCD Display:Spindle speed value ,processing feed rate value

Using steps:

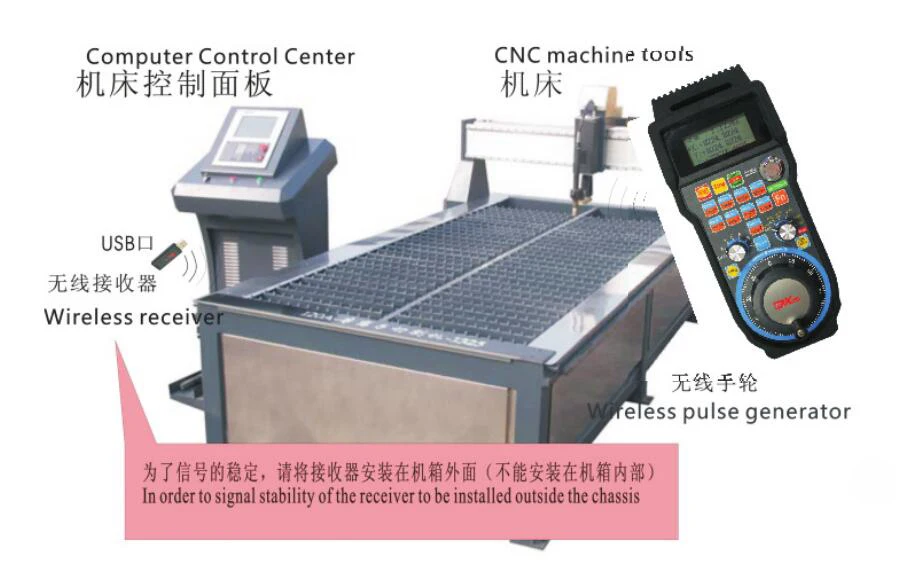

  1. Insert the USB Receiver,wait for the automatic driver installation is completed
  2. The Drivers(in the CD) XHC-ShuttlePro.dll copied to/mach3/Pluglns
  3. The all macro files(In the CD inside macro folder) copied to../Mach3/macros/under mach3mill
  4. Wireless MPG,install 2 AA batteries ,turn on the power switch,you can normally use



Compare New and old vision:

  1. Handwheel encoder: New 100PPR; Old 50PPR
  2. Magnification selection: New rotary switch; Old button selection
  3. LCD: New Dot Matrix LCD Backlight, Old Ordinary LCD
  4. LCD signal display: New Yes; Old No
  5. LCD power display: New Yes; Old No
  6. Pulse delay: New optimization delay; Old has delay
  7. Key functions: New: 13 keys, using combination keys to optimize operation; Old: 18 keys
  8. Expansion output port control: New: button directly controls OUT3-OUT7; Old: need custom settings





Explantion:

Key success indication:When you press the button ,the receiver receives the key value ,the indicator flashes about ,indicating successful key operation

Speed indicator:

When you press MPG button,band switch to select 2%,5%...,LCD display CON and different speed,when you press Step button,band switch to select 0.001,0.01…,LCD display Step and different speed

Axis selected location:Axis selection switch position ,LCD display axis selected.X:X axis workpiece coordinate axis,X1:X axis mechanical coordinate

For more information or Manual ,please contact us

7123456

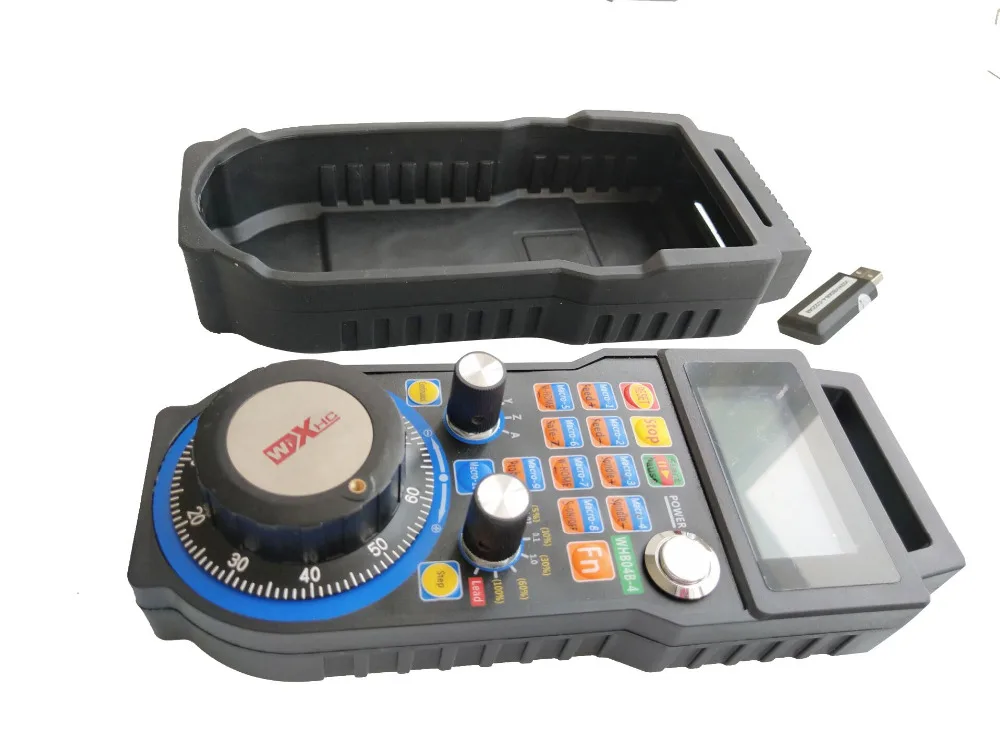

Include:

1 x Handwheel

1 x USB

1 x CD

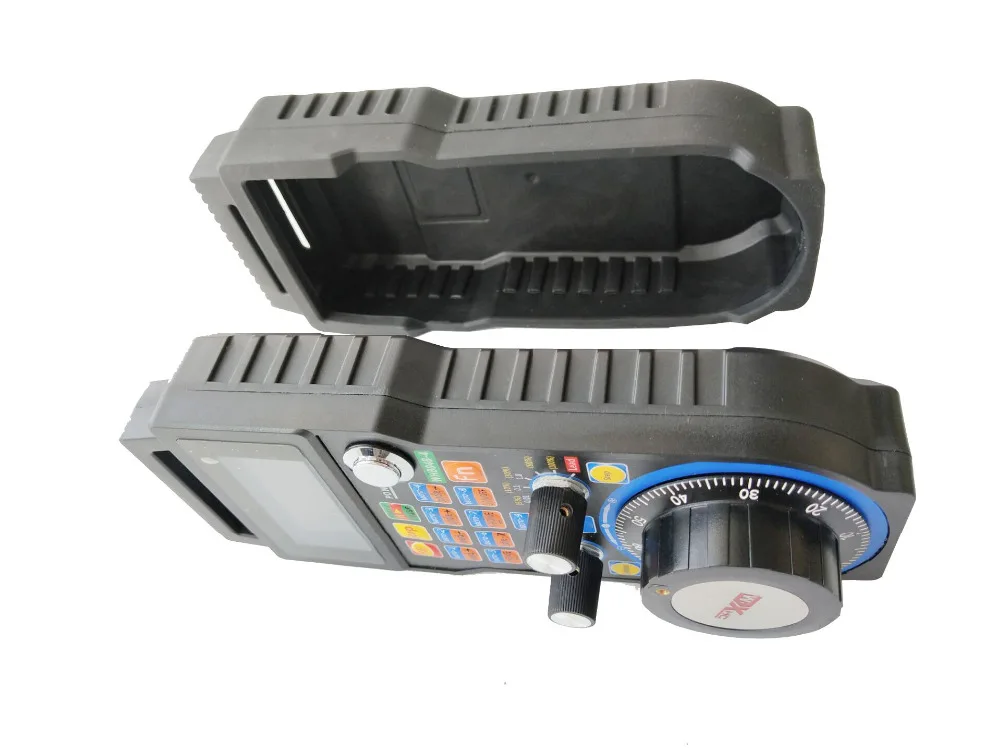

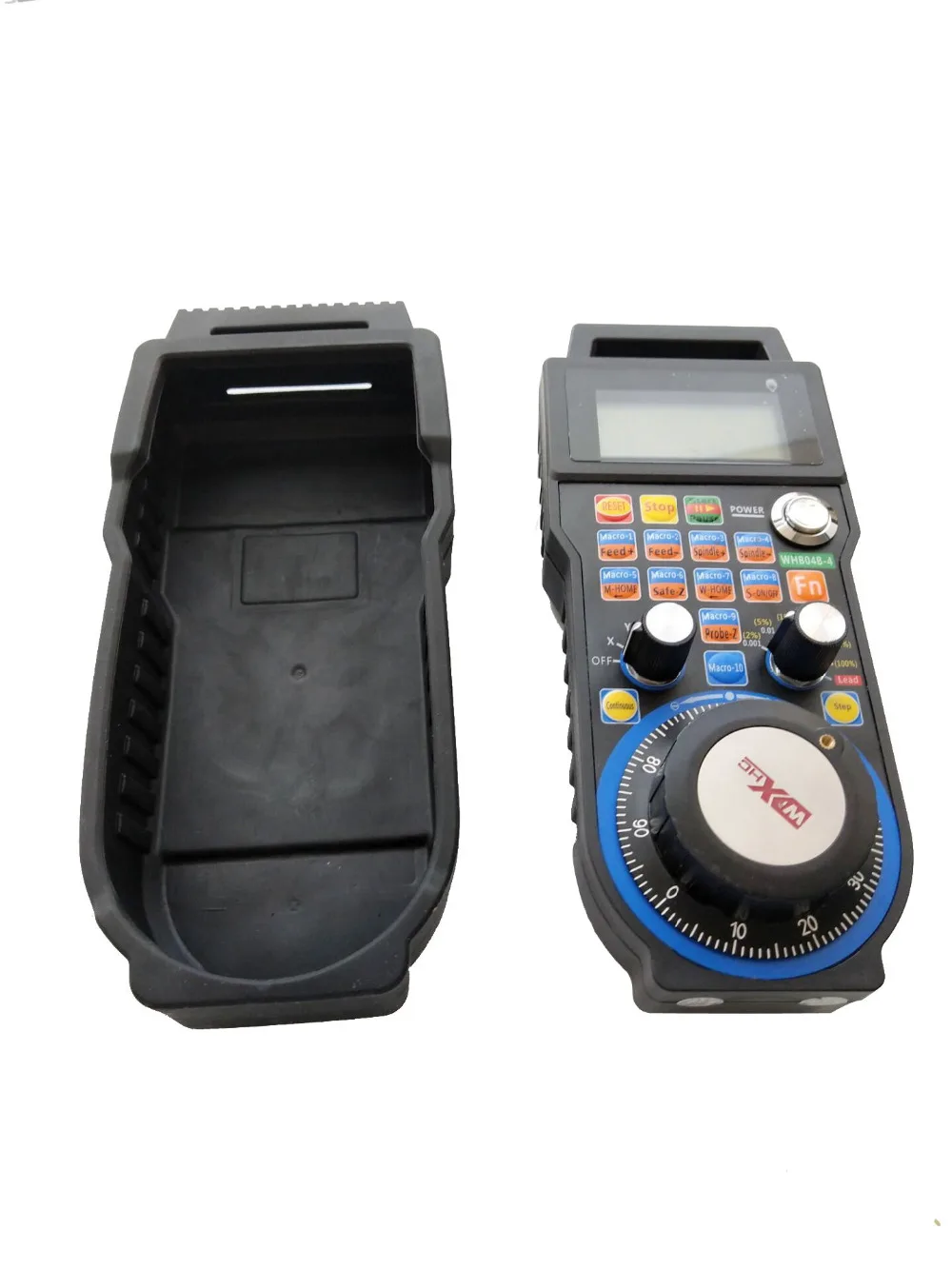

1 x Protection Case
