Portable Multi function Aluminium alloy Hand pump siphon fuel transfer pump Air water diesel gasoline Engine Oil suction for Car

Portable Multi function Aluminium alloy Hand pump siphon fuel transfer pump Air water diesel gasoline Engine Oil suction for Car
  • Продавецflimmer.com
  • Список ценUS $21.37piece
  • Продажная ценаUS $21.37piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,4 (830)

Oписание продукта

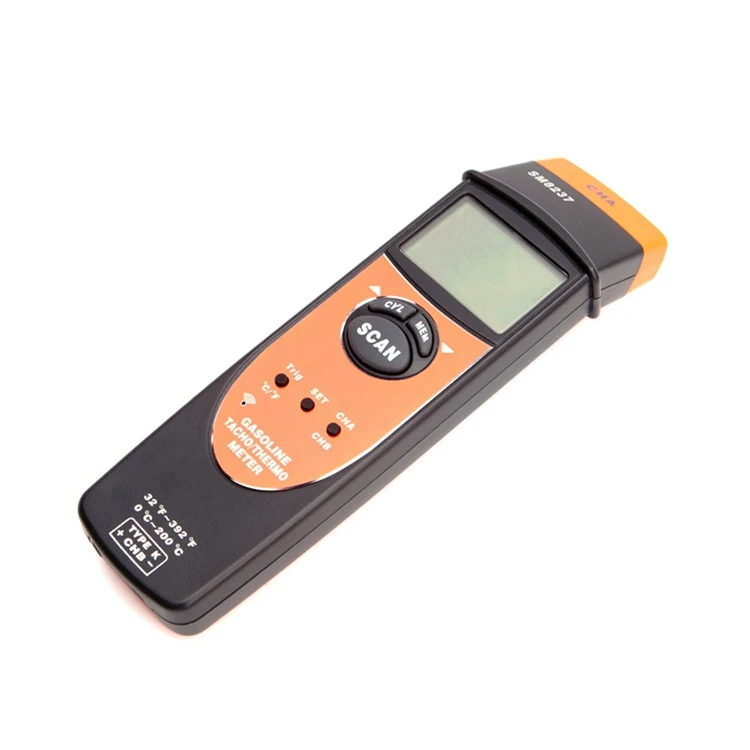

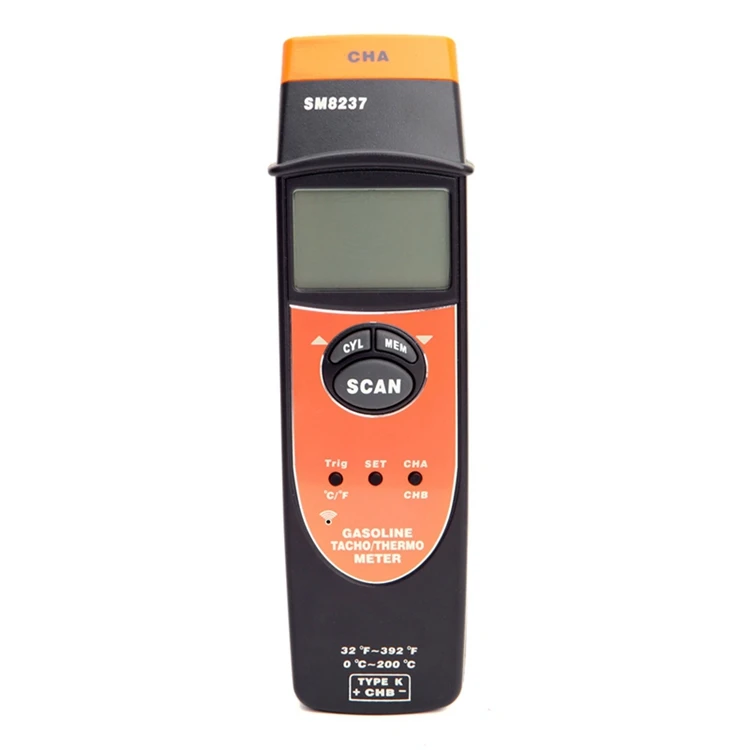

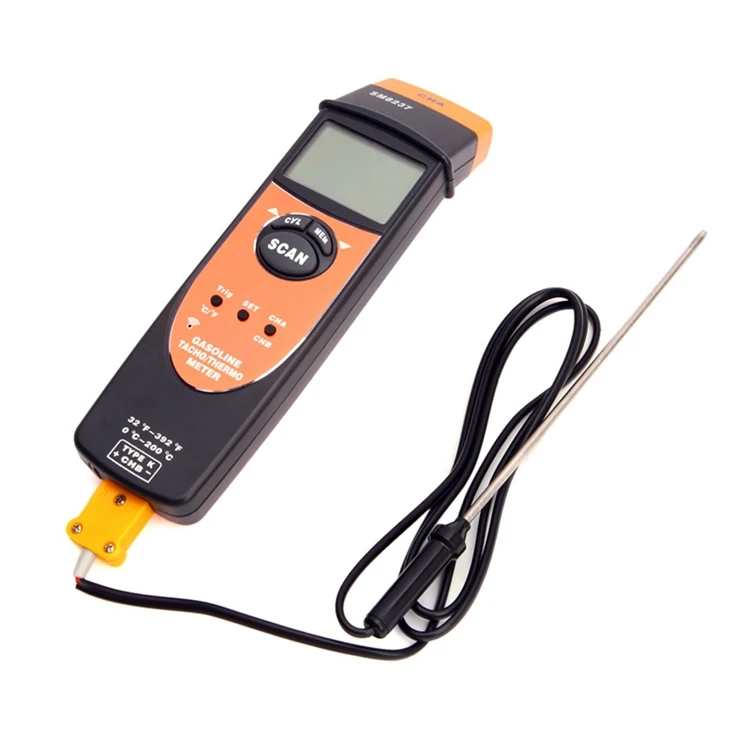

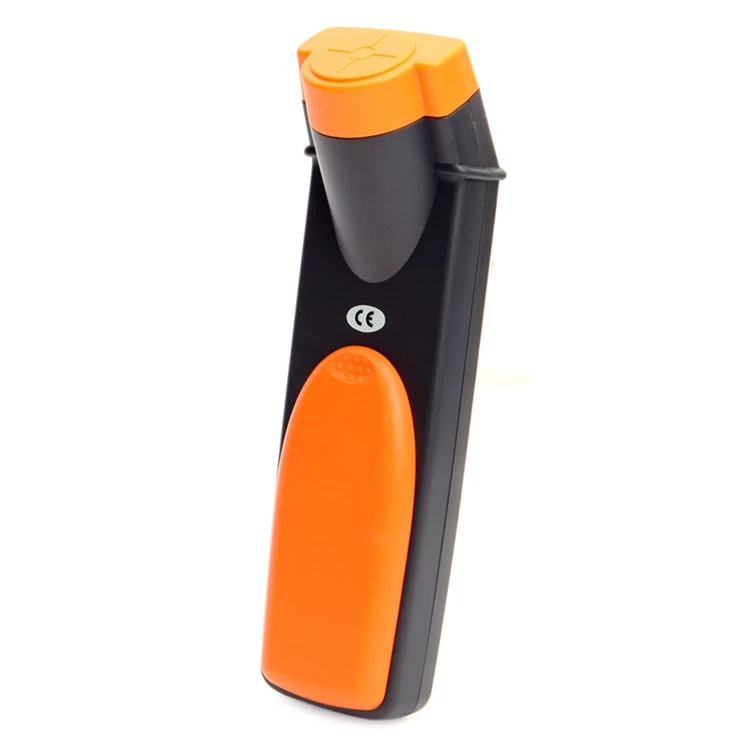

Portable Gasoline Engine Tachometer Digital LCD Gasoline Engine Speed Analyzer USB Interface Record Speed Measure Tools SM8237

sm8237 (2)__sm8237 (3)__sm8237 (4)__sm8237 (5)__sm8237 (6)__sm8237 (7)__sm8237 (8)__sm8237 (10)__


The analyzer is mainly used for the single measurement or continuous measurement of the revolution speed of single-cylinder or multi-cylinder. It can measure the revolution speed in a non-contacting way and is easy for operation in high precision. The analyzer has three types of working modes including:
1. Single measurement mode which is applicable for ordinary basic measurement.
2. Continuous measurement mode which could record the variation data regarding engine speed within a certain period, then transmit the data to the computer through USB interface, so as to achieve data management and analysis. It is applicable for on-site operation in workshop.
3. Real-time measurement mode which could be achieved by the connection to the computer, so as to transmit the real-time measured data to the computer. It is applicable for on-line analysis in the lab.
II. Performance indexes:
1. Range of measurement:
  Two-stroke: 200-20000rpm;
  Four-stroke: 400-40000rpm.
2. Measurement distance: 5mm-10mm;
3. Measurement accuracy: ±10rpm;
4. Display: 5-bit LCD;
5. Sampling time: 0.5S/Time;
6. Recording function: continuous record of 20,000 data;
7. Interface: USB interface, used for recording the reading of record data and the transmission of real-time data;
8. Applicable for engine: two-stroke, four-stroke, single-cylinder or multi-cylinder gasoline engine.
9. Power: 3×1.5V, AAA battery;(Not Included)
10. Operating environment: 0℃-40℃, 10-80%RH;
11. Size and weight: 160×51×37 mm, about 130g
12. In the continuous measurement mode, the start time for measurement could be recorded through setting;
13. Upper and lower limit of the alarming value could be set based on the user’s demand. If the measured value exceeds the setting range, the analyzer will give an alarm;
14. The analyzer has no key for “Power Off”. It will be powered off automatically after 20s no operation after the stop of measurement. The automatic power-off function is not available in setting mode.
NOTE:This Product With Paper Box Package


When you place an order,we will send the items within 3 days once your payment is completed.

We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.

Please note that buyers are responsible for all additional customs fees, brokerage, fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.

Warranty & Maintenance:

We offer the 15 days free replacement.  Buyers may request for a replacement within 7 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return.


Your satisfaction and positive feedback is very important to us.  Please leave positive feedback and 5 stars if you are satisfied with our items and services.

The Most Important!!!

If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback.
