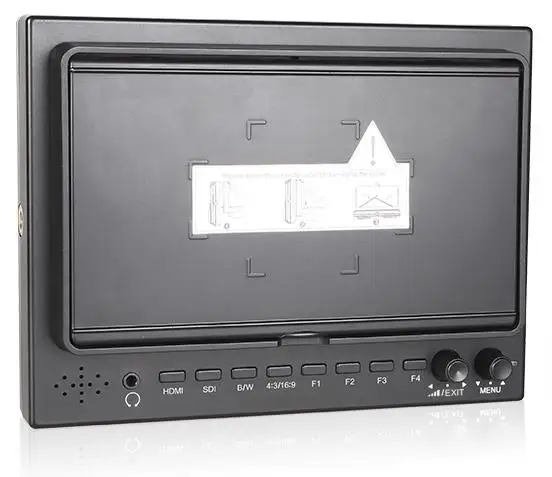

Feelworld FW760 7 Inch IPS Full HD 1920x1200 Support Up 4K On Camera Field Monitor 11 Magic Arm 2200mAh Battery 1200:1 Contrast

Feelworld FW760 7 Inch IPS Full HD 1920x1200 Support Up 4K On Camera Field Monitor 11 Magic Arm 2200mAh Battery 1200:1 Contrast
  • Продавецflimmer.com
  • Список ценUS $254.44piece
  • Продажная ценаUS $254.44piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,5 (832)

Oписание продукта

aeProduct.getSubject()

Display Spec.
 Model FW702HSD
 Screen Size 7" IPS
 Resolution 1024×600 pixels
 Aspect Ratio 16:9
 Brightness 600cd/m⊃2;
 Contrast Ratio 800:1
 Backlight LED
 Viewing Angle 85°/85°(L/R) 85°/85°(U/D)

Input
 1 X BNC SDI
 1 X HDMI HDMI

Output
 1 X BNC SDI
 1 X HDMI HDMI

Audio
 Audio Out Stereo Headphone, Speaker

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General
 Input Voltage DC6~24V
 Power Consumption ≤9W
 Working Temperature -20°C~55°C
 Storage Temperature -30°C~65°C
 Unit Size 194L×148H×28.5D mm
 Unit Weight 521g

Advanced Features
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus)
* Check Field (Red,Green,Blue,Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%,2.35:1)
* Image Flip (H, V, H/V)
* Image Freeze
* Custom Color Temperature

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

Innovation OSD Operation
FW-702HSD double function knobs are FEELWORLD\'s exclusive technology feature, which will bring you more convenient and rapid operation feeling.

aeProduct.getSubject()aeProduct.getSubject()



aeProduct.getSubject()

aeProduct.getSubject()

Input and Outputs
The FW-702HSD is with SDI and HDMI inputs and outputs. Since the monitor is all digital, it shows the purest and cleanest signal directly on the LCD panel. To remove the legacy analog inputs and circuits makes your image as clean as possible.

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

Foldable Sunshade

New extended screen hood, acquire ideal visual effect under almost all environments.

aeProduct.getSubject()

aeProduct.getSubject()



aeProduct.getSubject()

Standard Accessories:
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battery Plate
1× Operation Manual

FW-702HSD FW-768-S-O-P-2
