Elecrow 4WD RC Smart Car Chassis S3003 Metal Servo Bearing Kit for Arduino Metal Gear Motor 25MM Robot Platform DIY Kit Robot

Elecrow 4WD RC Smart Car Chassis S3003 Metal Servo Bearing Kit for Arduino Metal Gear Motor 25MM Robot Platform DIY Kit Robot
  • Продавецflimmer.com
  • Список ценUS $42.39piece
  • Продажная ценаUS $42.39piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,2 (781)

Oписание продукта

RM1641845738261906

Threel X 3K Removable DIY Kit Frame RS2306 2750KV 30A ESC Brushless Motor With PDB For FPV Racing Drone Quadcopter


Please Note :

Hobbywing XRotor BLHeli-S Dshot600 30A ESC / EMAX BLS Bullet 30A Brushless ESC / Flycolor MINI 30A BLHeli ESC OPTO / Flycolor Raptor BLS Pro-30A  Brushless ESC to options

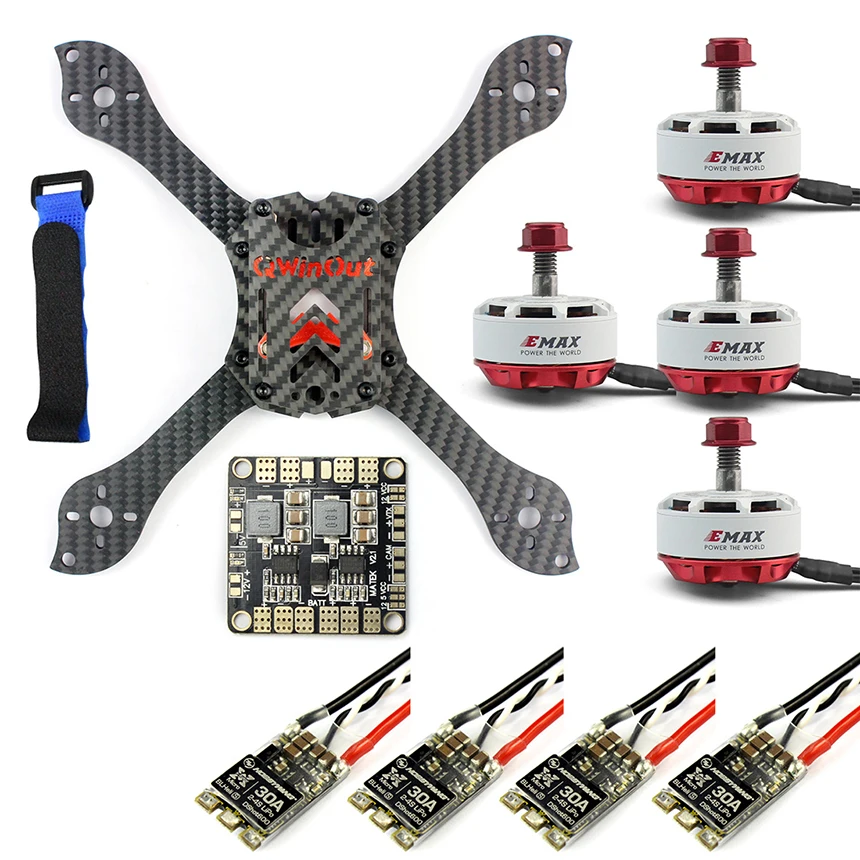

Package Listing :

5X Hook and Loop Fastening Tape X 1

Mini Power Hub Power Distribution Board PDB with BEC X 1

Hobbywing XRotor BLHeli-S Dshot600 30A ESC / EMAX BLS Bullet 30A Brushless ESC / Flycolor MINI 30A BLHeli ESC OPTO / Flycolor Raptor BLS Pro-30A X 4

EMAX RS2306 2750KV Brushless Motor X 4

Threel True X 3K With 4mm Removable Full Carbon Fiber Freestyle Frame Kit  X 1

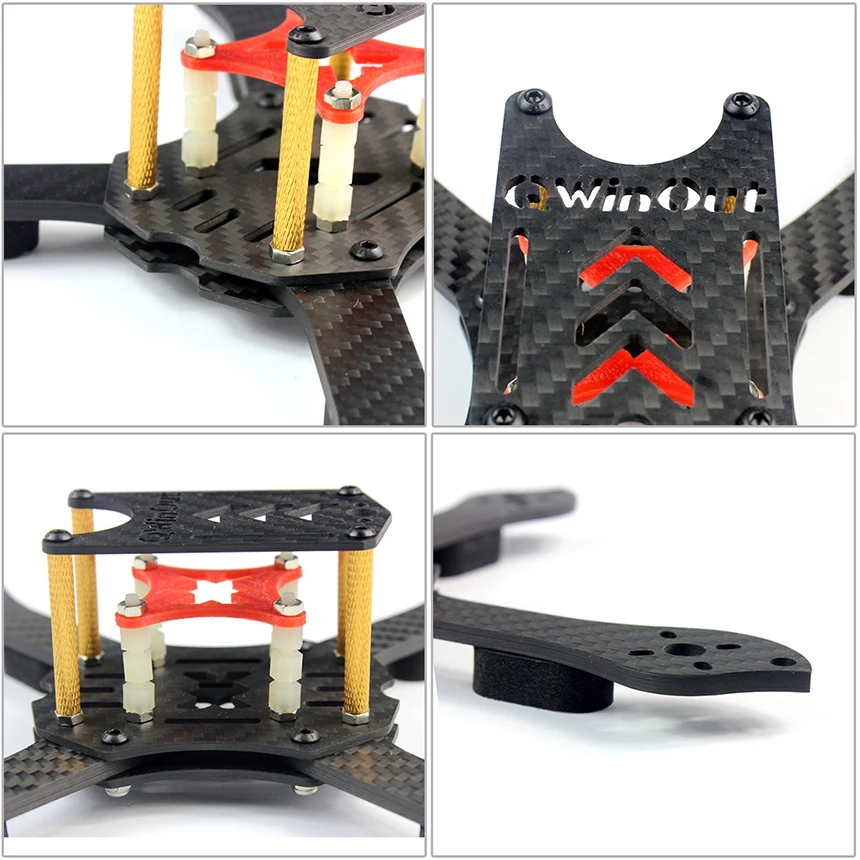

Threel True X 3K With 4mm Removable Full Carbon Fiber Freestyle Frame Kit :


Three1 is a versatile FPV four-axis flight rack with high-performance Freestyle flight and excellent racing capability.
3K high-strength carbon fiber board, to ensure that the framework of strong, stylish streamlined body design. Positive X structure, effective reinforcement of the body hardness. The  streamlined design allows the fuselage to benefit from the machine, the  machine is curved thickness 4mm. A single arm with three M3 * 12 screws  through two 2mm carbon fiber board fixed. Roof thickness using 2MM, more durable, with 35mm high body space, enough for players to choose electronic products.


 Rack Advantages:
1, the rack with 2mm roof, the arm is curved thickness 4mm arm split  frame, 3K carbon fiber sheet carved craft to achieve light, while solid.
2, the rack is a positive X structure, this structure is very suitable  for crossing, fast, more violent, more flexible, more stable center of  gravity.
3, multi-axis aluminum column column aluminum column outside the grid texture texture non-slip, more atmosphere.
4, with 20cm buckle battery strap / a set of flying control to install nylon pillars and a 2mm center plate.
Model: Three1
Weight: 162g
Wheelbase: 210mm
Arm thickness: 4mm
Roof thickness: 2mm
Thickness of the upper / lower plate: 2mm
Column: 35mm
Maximum available paddle: 4-5 inch
Referral configuration:
Motor: 2204/2205/2206/2306 KV2000-2800
Electricity: 12A-35A
Battery: 3S / 4S 1500-2200mAh
Flight Control: CC3D / NAZE32 / F3 / F4 / PIKO BLX







Related parameters:

Wheelbase: 210mm
Roof: 2mm
Column: 35mm
Weight: 148g

Recommended with: (Not included)
Motor: 2204/2205/2206/2306 (2000-2800KV)
ESC: 12A-35A (3-4S)
Battery:3S/4S 1500-2200mAh Battery
Propeller: 3-4 inch Propeller
Flight Control: F3 / F4 / CC3D / Naze32 / PIKO BLX

Note:
1.Condition: brand new
2.Material: 4mm 3K Carbon Fiber
3.Special design for FPV Racing
4.Suitable for DIY your own quadcopter
5.Made form the ultra strong material which provides better resistance to damage on hard landing
6.Durable for long-term use

The Frame built form very strong materials which provides better resistance to damage on hard landings.



Hobbywing XRotor BLHeli-S Dshot600 30A ESC:

This Super Light and MIni Brushless ESC Support DSot 150/300/ 600 Throttle Mode , As well as Support PWM throttle Signal Mode (1000µs-2000µs) , Oneshot125(125-250µs), Oneshot42(42-8µs) and Multishot (2-25µs)。

Item Name : XRotor BLHeli-S-Dshot600  30A
Con/Peak .Current : 30A /40A (10S)
Support Volatge : 2-4S
Firmware : BLHeli-S A-H-50 16.5 Version
Programming : Remote Control , BLHeliSuite
Support Signal : PWM ,Oneshot125, Oneshot42, Multishot
Size: 23.8*14.5*5.8mm(Exclude Wire)
Weight : 6g ( Exclude Wire )


EMAX BLS Bullet 30A Brushless ESC :

Spacifications :
Item Name : New EAMX FPV Dshot Bullet ESC
Suit for : 130 RC FPV Racer Drone Multicopter
BEC:NO
MCU: EFM8BB2
Firmware : BLHeli_S
Support : MultiShot ,Oneshot42,OneShot125

Feature :
1. super-mini, ultra-light ESC.
2.BLHeli-S firmware (16.5) /Supports DSHOT, MULTISHOT, ONESHOT42, ONESHOT125.
3.New heat sink design both effectively reduces the core temperature, and avoids propeller strike damage
4.Top quality MOSFET, ceramic capacitors. 3oz high TG PCB board, significantly improves heat dissipation and improves system efficiency.

Flycolor MINI 30A BLHeli ESC OPTO :

Features :

1 for 2-4s battery

2 light weight,only about 9.7g per pcs

3 mini size,easy to mount with your copter

4 F330 main control chip,Zero latency operation

5 working current: 20A or 30A

6 BEC output:None
