Name17 1A 12V non captive Linear 42mm Stepper Motor Screw Rod Linear Stepping Motor for 3D Printer Desktop straight screw motor

Name17 1A 12V non captive Linear 42mm Stepper Motor Screw Rod Linear Stepping Motor for 3D Printer Desktop straight screw motor
  • Продавецflimmer.com
  • Список ценUS $30.45piece
  • Продажная ценаUS $30.45piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,9 (124)

Oписание продукта

GX155*150 1610 500mm Ball Screw Slide Rail +1pc nema23 Stepper Motor

Model: GX155*150 1610

Effective stroke: 500mm

Ballscrew diameter: 16mm,lead 10mm

Block size: defalut size 155*150mm  (it also have 155*80mm,80*50mm, if you need please contact me.different block size its price is different,different block size its load capacity is different)

Speed: Max 100mm/s

Repeat positioning accuracy:up to ± 0.02mm

Horizontal load: max 100kg(150*150 block)

Vertical load:       30kg

Block Quantity:2pcs

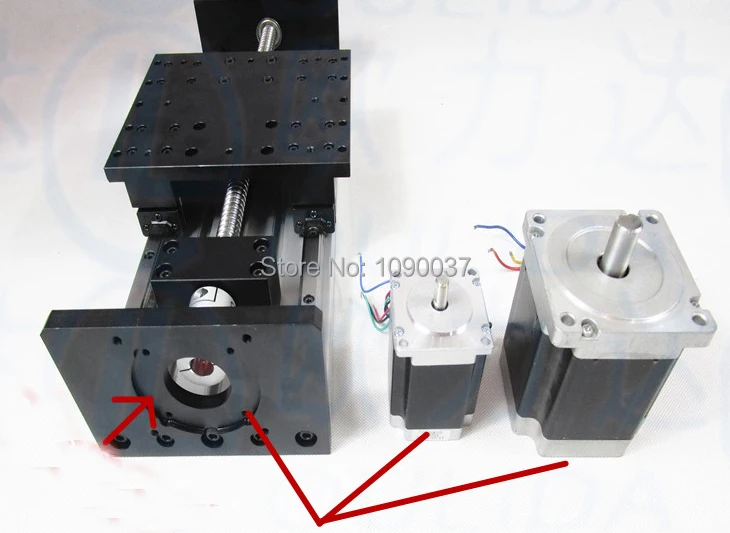

Nema 23 stepper motor

Torque 0.9NM

Current 3A

Voltage 24V

 Diameter: 57*56mm

If you want high torque motor, please contact me, i will send new link for you.



GX have three size for block:

80*50mm is 1pc block,it use 12mm rail.

155*80mm is 1pc block, it use 15mm rail.

155*150mm is 2pcs block, it use 15mm rail.



You can tell me your requiremnt for loading weight, so we can recommend right size for you.

Welcome Customer-made different travel length !

GX 155X150

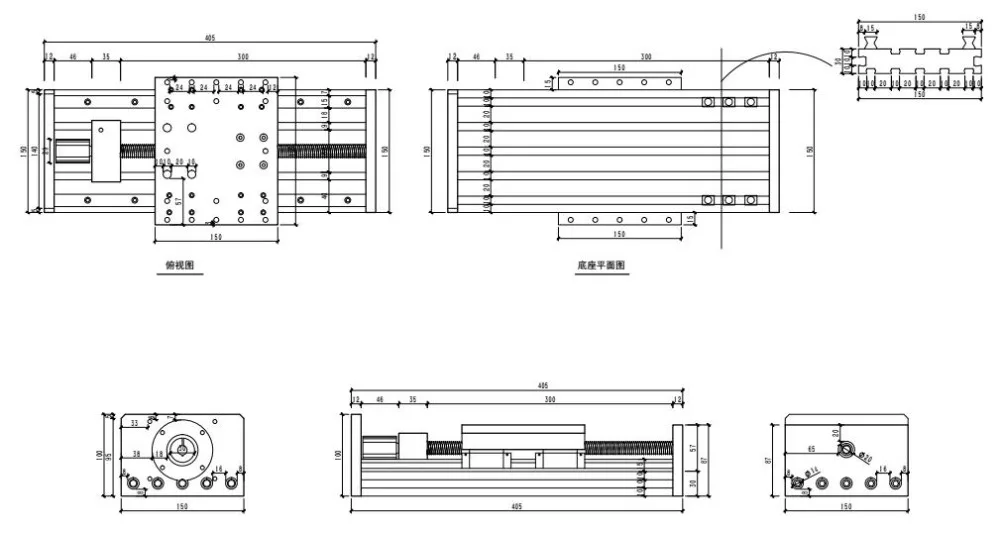

This drawing is for 80* 50mm block 100mm stroke just for reference, if you want 200mm stroke, it just add 100mm. if you need 500mm, it add 400mm and so on.

Besides,we can also customize the travel length as your demand,contact us if any needs please.





We also accept customized products, delivery time 3-7 days,Welcome InquiryPrety
