Original HYSTOU FMP04B Fanless 12V Mini PC Core I7 4510U I5 4200U I3 4010U Intel QS77 With SATA / MSATA Port

Original HYSTOU FMP04B Fanless 12V Mini PC Core I7 4510U I5 4200U I3 4010U Intel QS77 With SATA / MSATA Port
  • Продавецflimmer.com
  • Список ценUS $165.54piece
  • Продажная ценаUS $165.54piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,9 (714)

Oписание продукта

i3 mini pc

intel i3-4010U Dual Core 1.7GHz Quad Thread 3M Cache

8GB RAM,256G SSD, 2*Gigabit LAN, 4*USB 3.0, 6*COM RS232

intel HD Graphics 4400, 3200*2000, 4*USB 2.0 WiFi, 2*HDMI
HTB1n3aLKXXXXXa6XXXXq6xXFXXXy

Wireless Mini Keyboard on sale for this mini computer:

HTB1KhAQJXXXXXX5XXXXq6xXFXXXf
HTB1ob3pIpXXXXcOXVXXq6xXFXXXZ
Kindly Remind:
1, 3 years Warranty.
2, This computer works with lower volt at 1.35V instead of normal 1.5V.
3, The RAM and SSD/HDD are from famous brand, the RAM is normally Samsung, Elpida, Hynix; The SSD is normally from Toshiba, Samsung, ADATA, Intel, Lite-on etc. they will be shipped out at random in stock.
4, The Operating System is OEM crack version, not licensed but activated, the price is only for hardware costs.
5, According to Aliexpress policy, it is buyer\'s duty to pay import tax if via express shipping, it is normally declared at USD100-120 to save buyer\'s tax, but not sure if it is free.


Branded Spare Parts, Boycott Fake Parts!!
Top Quality, 3 Year Warranty, Rest Assured!!


1, Quality Approval:
HTB1ZUbiGVXXXXX7apXXq6xXFXXXz

2, Features & Benefits:
GPU: Intel® HD 4400 Graphics, 3200*2000 resolution, support Blu-ray 1080P
I/O: Mic;Speaker; 4*USB 3.0; 4 USB 2.0; 2* Gigabit LAN Port; 2* HDMI; 1* DC12V In; 6* RS232 COM;
Operating System: Default: Windows 10, Optional: Windows 7, 8, Linux Compatible
Language: Multi Language available;
USB port: 4*USB 3.0, 4*USB 2.0;  Serial Port: 6* RS232 COM;
Parallel Port: no, support external USB to Parallel Port adapter;
Feature: Fanless
Wireless: 300MB WiFi with 2 Antennas
HD Out put: 2*HDMI port, maximal support Blu-ray 1080P resolution;
LAN port: 2 Gigabit RJ45 port;

HTB1S31JKXXXXXcnXXXXq6xXFXXXg

3, What can this mini computer do?
1. Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect;
2. Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others
3. Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don\'t play very high grade 3D games.
4. Entertainment: support blue ray 1080P video play, XBMC and others.

104103HTB1shCvKXXXXXaCXFXXq6xXFXXXXHTB1goyNKXXXXXXQXXXXq6xXFXXX4
5, Specification:

Model  NC310 i3 4010U Mini PC
General
CPU Onboard Intel Core i3 4010U 1.7GHz Dual Core
Operating System Default: Windows 10,  Optional: Windows 7, 8, Linux
Memory 1* DDR3L  SDRAM Memory Slot, Max to 8G
DDR3L 1333/1600 LPDDR 1333/1600
Storage SSD: 32GB/64GB/128GB/256GB/512GB
 HDD: 320GB/500GB/750GB/1TB
Chipset Intel QS77 Express

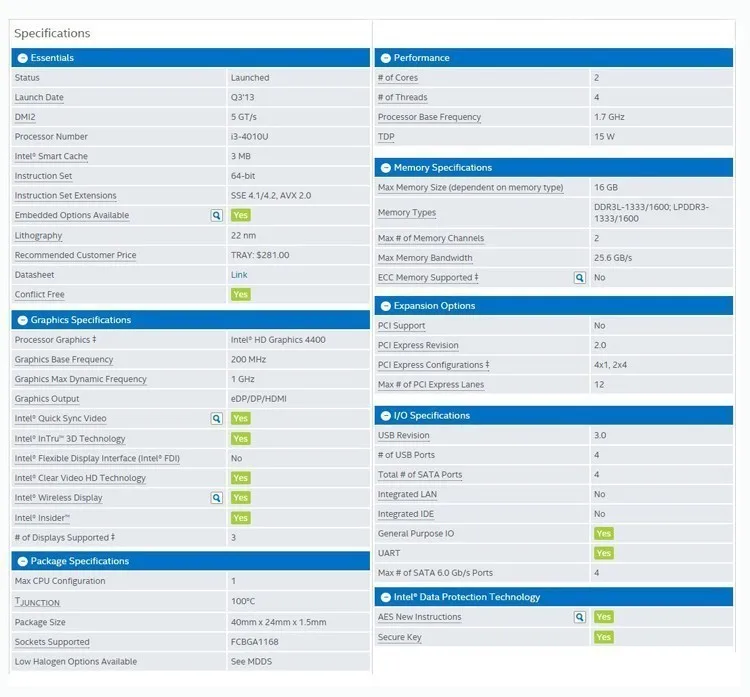

Processor Details
CPU Intel Core i3 4010U
GPU Intel® HD 4400 Graphics, support Blu-ray 1080P
Core code Haswell
Technique 22nm
L1 data cache 2*32 KB
L2 data cache 2*256KB
L3 cache 3MB
BIOS AMI BIOS, ACPI Supported
Support calls on function automatically
Support Wake-On-LAN
Function Hyper-Threading, Virtualization Technology, 64 bit computing
Audio Card ALC892 HiFi
6 channel sound
WiFI With dual antenna, 802.11b/g/n
I/O Ports
Display Phort 2*HDMI
USB Port 4* USB3.0
4*USB2.0
COM Port 6 COM RS232
SATA Port 1* MSATA 3.0, 6Gb/s;
1* SATA 3.0, 6Gb/s
Mini PCIE 1*MSATA SSD
1* WiFi Module
Ethernet 2* Intel 1000M 82574L LAN Ports
Power input port
Input DC100-240V  AC/50-60Hz
Output DC 12V~19V/6A
Consumption 15W
Operating Temperature 0/70 Centigrade(32F~140F)
Storage Temperature (-20/+80)Centigrade
Relative Humidity 10%~90%(non-condensing)
Product Dimension&Details
Noise Fanless System
Size 17.5X21X4.5cm
Weight 2.5KG
Shell Black Color
Package Box Neutral Color Box
Content Mini PC, Power Adapter, Power Cable, Bracket Mount, Antennas, Screws



HTB168CxKXXXXXadXFXXq6xXFXXXd

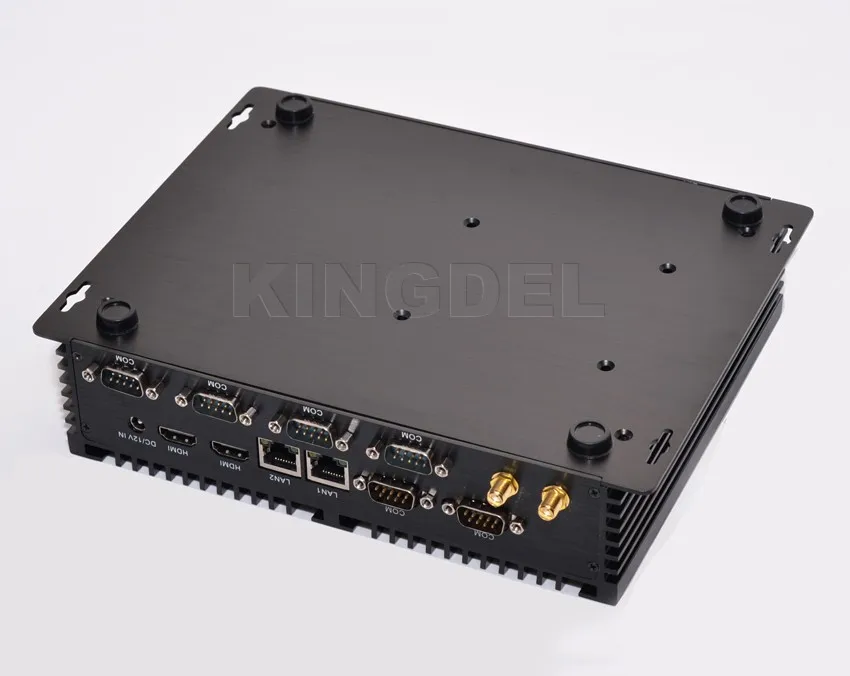

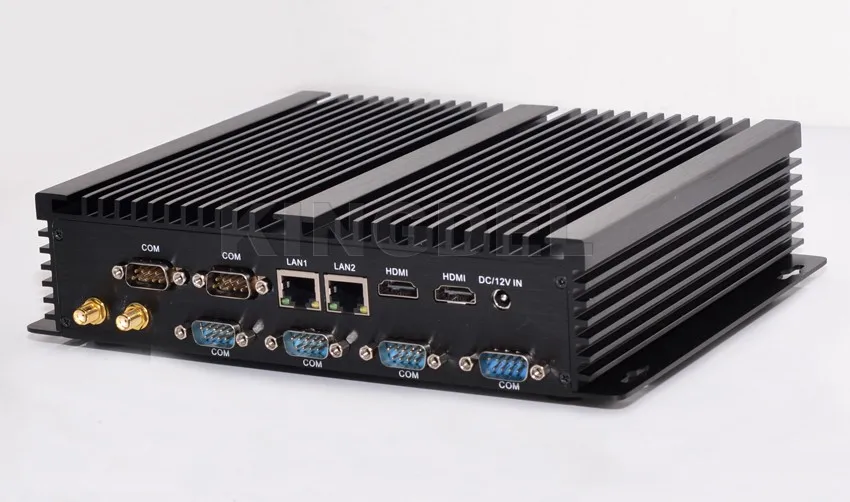

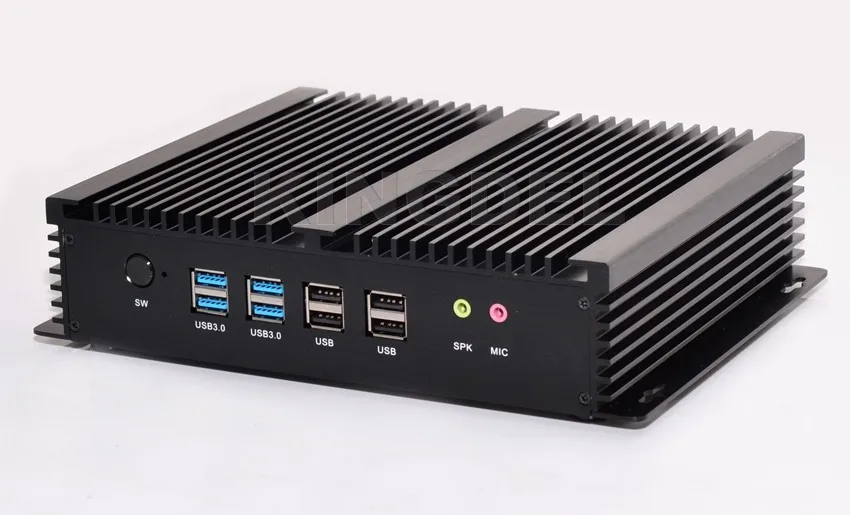

5, Product Photos:

DSC_4967-2DSC_4972-2DSC_4980-226HTB1Cp7qIpXXXXcAXVXXq6xXFXXXjHTB1zybzHpXXXXbQaXXXq6xXFXXXzHLB17PRnGXXXXXXfaXXXq6xXFXXXQHTB1fRlPHXXXXXbpXVXXq6xXFXXXRService2
