LED LCD Panel Tester Tool For TV Laptop Repair With Built-in 100 Kinds of Lvds Screen Resolutions Support 7-84" Free Shipping


The 6th generation newest LED LCD panel tester tool are getting more refined with new hardware driver and software programs.

Features
1.Easy and convenient to operate,there is a built-in procedure with 100 kinds of Lvds screen resolutions.

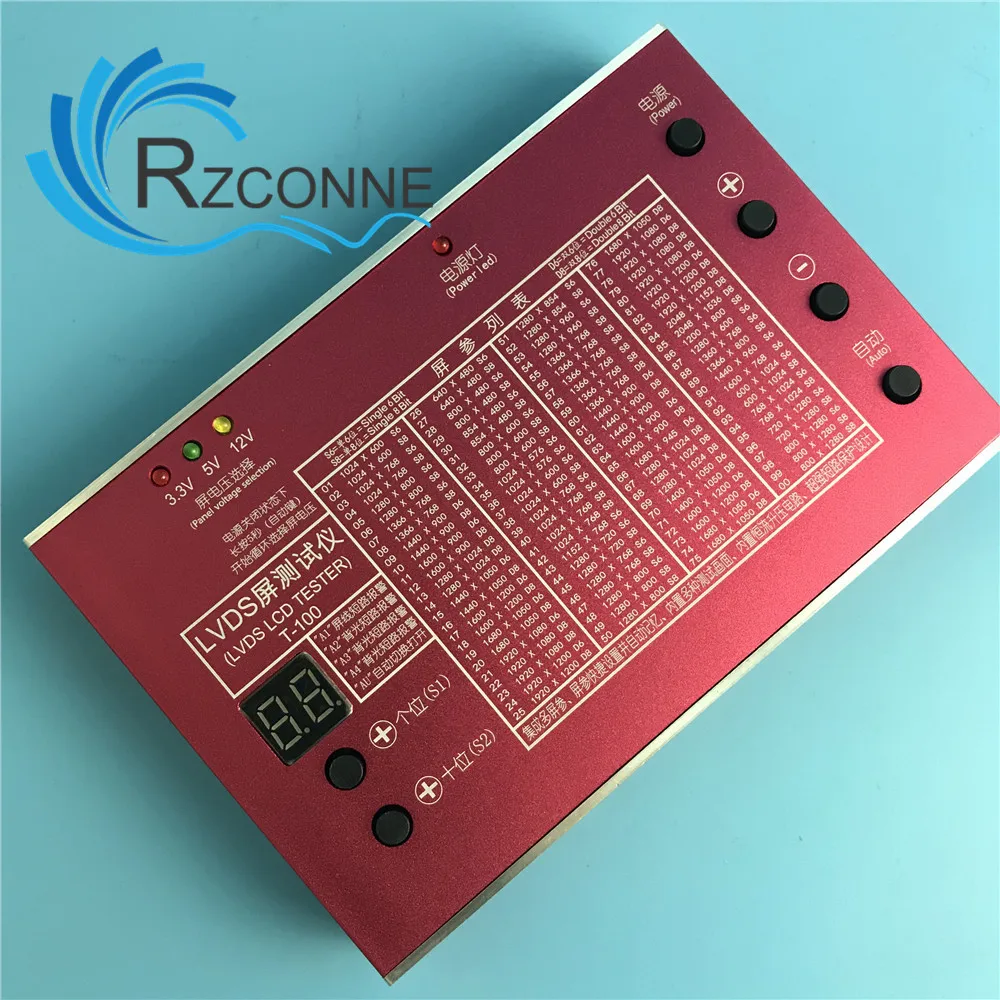

2.With digital number display indicator,you can choose corresponding resolution by swifting button.
3.Make screen line in proper position and prevent driver board from damage with LCD power supply short circuit protection function.The digital number display indicator will show flickering \'00\' and buzzer will sound if the screen line is short-circuited. The digital number display indicator will return to normal after removing short circuit.(More than 10 minutes\' short circuit is not allowed).
4.There are instruments on the board, so the method of using screen tester is more understandable.
5.There are a variety of built-in standardized testing charts ,powerful and applicable.
6.The screen will show external VGA input signal when plug external VGA line.
7.Supporting to test LCD and LED screen with LVDS Interface from 7 inches to 84 inche



Specifications:

1.The LED LCD panel tester is a general household appliance repair tool and are widely used to check LED LCD panel problem (from 7 inches to 84 inches).Support 3V 5V 12V LCD screens and Ipad 2 Screen,strong compatibility.

2.This LED LCD panel tester is easy to operate and features 100 kinds of screen resolutions which help you know LED LCD panel problem easily. It is safe with over current and short-circuit protection function.Pocket size,easy to carry.

3.Fast and efficiently!With help of this LED LCD test tool,you can know the panel problems easily.Using a single chip computer to control 100 kinds of resolutions from 640*480 to 2048*1536.Save Time! Save money!A necessity for LCD screen factories and technicians.



How to set up Tester to test LCD Screen:

  1. Identify model and part number of the LCD Panel
  2. Choose a correct wire harness and setting according to the panel, choose right voltage
  3. Apply setting to Tester
  4. Connect LCD panel wire harness between Tester and LCD Panel
  5. Connect LCD screen\'s back light to Tester
  6. Apply Input Signal to VGA
  7. Connect 12V DC to Tester and Turn it on

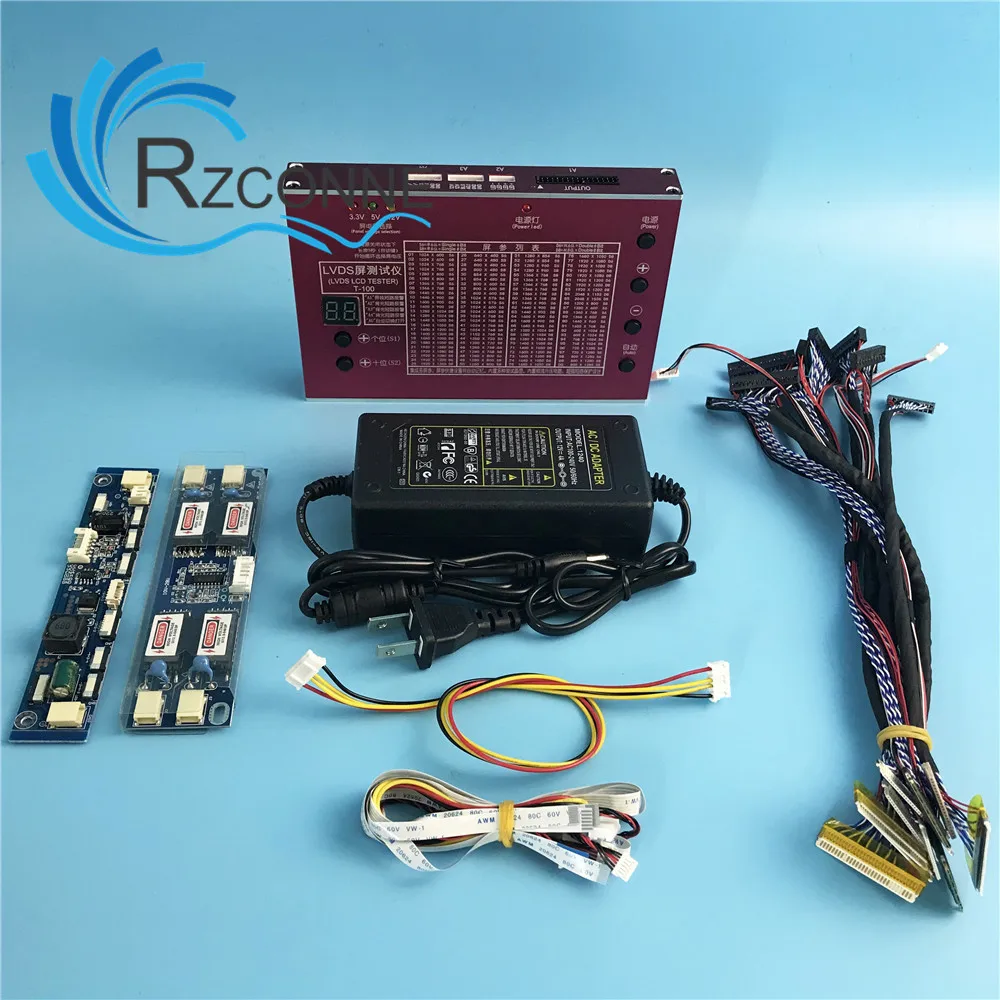

Package includes:
  • Panel tester*1;
  • LVDS cable*10pcs;

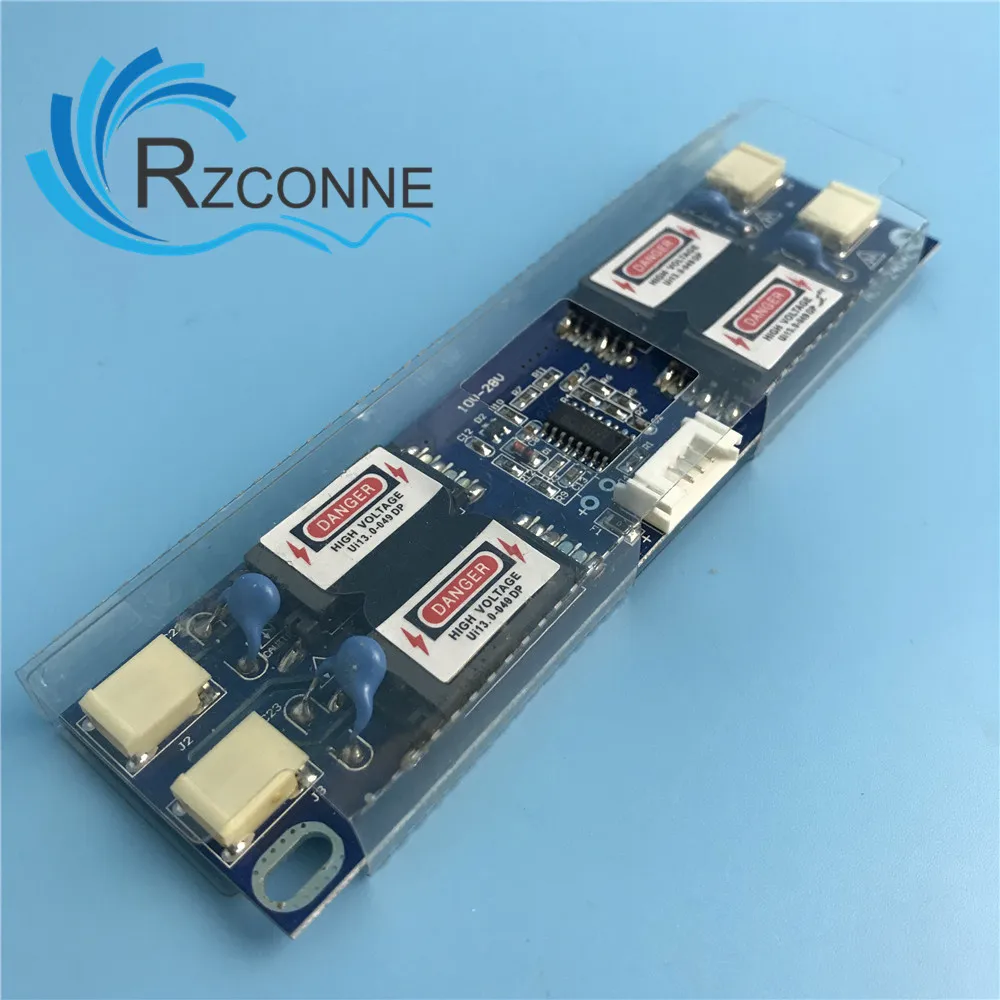

  • 4 lamps inverter*1(Excellent design: 4 Independent transformers, Can support 1 lamps,2lamps,4lamps );

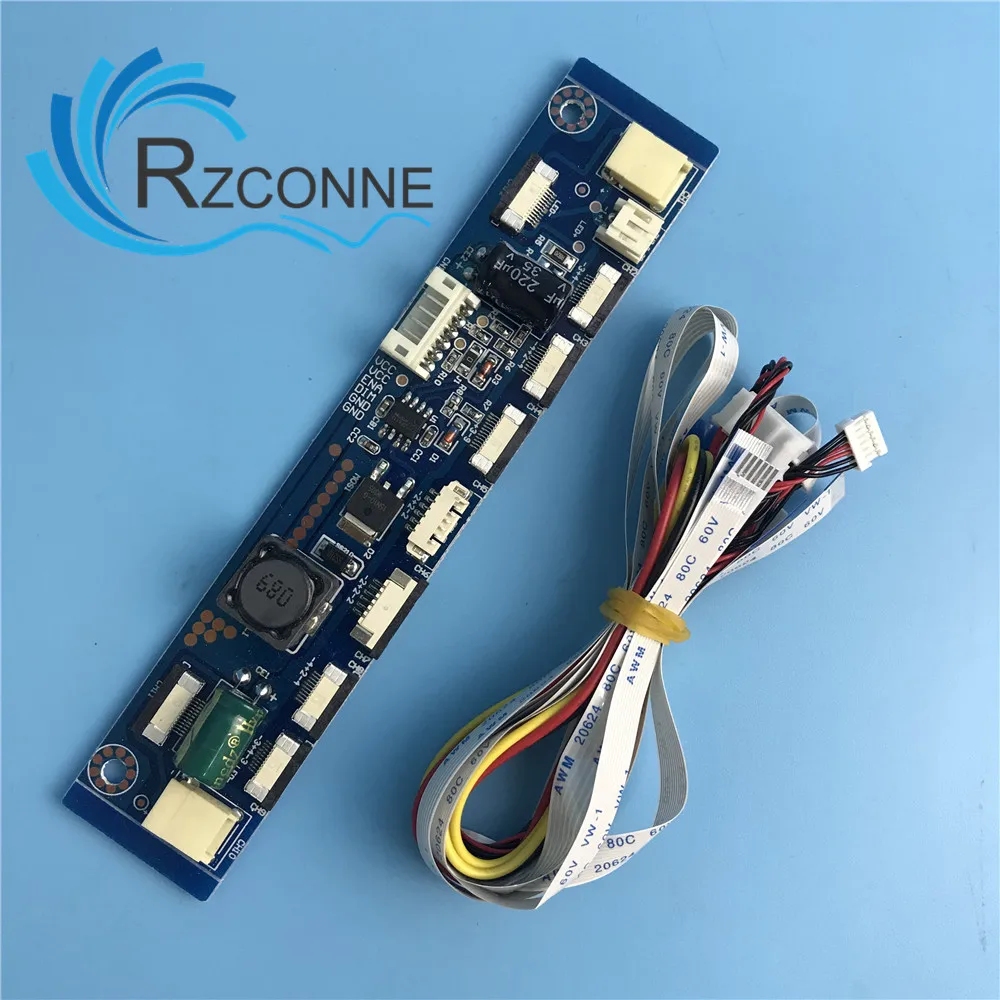

  • LED test board *1(support 12 kinds of definitions, wonderful LED panel test board)
  • 12V AC power adapter

Deatailed information about the 10 pcs/set LVDS cables:

1x 40pin 2ch 6bits

1x 40pin 1ch 6bits

1x DF19 20pin 1ch 6bit

1x DF19 20pin 1ch 8bit

1x DF19 30pin 2ch 8bit

1x DF14 20pin 1ch 8bit

1x FIX 30pin 2ch 8bit

1x FIX 30pin 2ch 6bit

1x FIX 30pin 1ch 6bit

1x FIX 30pin 1ch 8bit



aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

IMG_9921IMG_9922IMG_9925IMG_9926IMG_9927IMG_9931IMG_9935IMG_9941IMG_9936IMG_9937IMG_9939IMG_9940





Befor Buying

1.The connector,the length and the LED Quantity all in our description,please sure our LED Strip suitable for your TV befor buying.If not ,contact us first, thanks!

2.Because the product will be upgraded,there will be a little difference between the picture and the goods that you got. We promise the shape and function will the same as our description.
