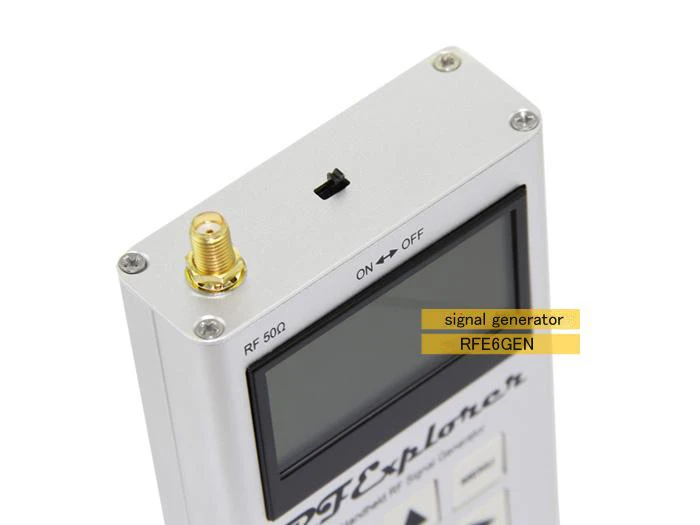

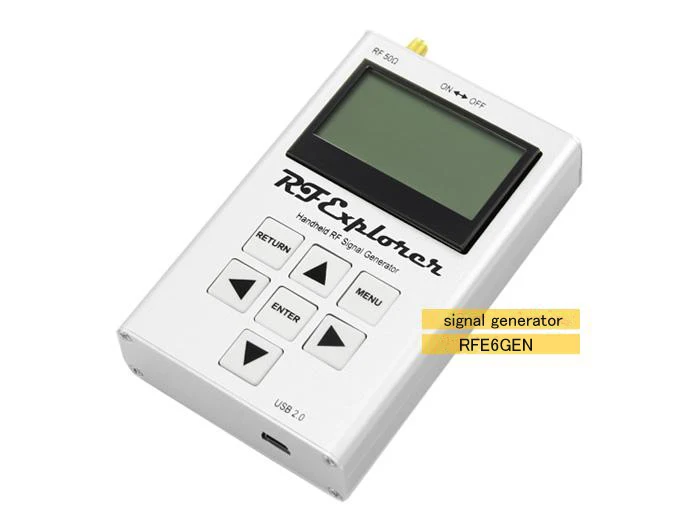

The RF Explorer Signal Generator (RFEGen) is a powerful, wideband fully programmable RF signal generator. It is the perfect companion for Spectrum Analyzer RF Explorer product line.



As a standalone unit, RFEGen can generate CW and Sweep signals by selecting embedded menu options. When connected to a PC, it can be fully programmed with the RF Explorer for Windows software tool. Furthermore, the unit can work as a powerful Tracking Generator when used with RF Explorer Spectrum Analyzer connected to the same PC, offering full Scalar Network Analyzer (SNA) capabilities. The SNA feature allows full characterization o​f filters, amplifiers and any 2-port RF device.



Features:





  •         Pocket size and light weight
  •         Solid aluminum metal case
  •         Lifetime free firmware upgrades available, open to community requested features
  •         High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
  •         RF Explorer for Windows PC client Open Source
  •         Can be extended with internal Expansion Modules for additional future band support and functionality
  •         Wide band support
  •
  •
  •
  •
  •          Frequency range supported: 24 to 6000 MHz
  •          Frequency step/resolution: 1KHz
  •          Frequency stability: 0.5ppm
  •          Temperature compensated (0-45C)
  •          Backlight for great indoor visibility
  •          Standard SMA 50 ohms connector
  •          Programmable Amplitude with included internal programmable attenuator:
    •    -40dBm to -30dBm in 3dB steps
    •    -10dBm to 0dBm in 3dB steps
  •         Amplitude accuracy: +-0.5dB (normalized) or +-3dB (absolute)
  •         Switch measurement point speed < 10ms
  •         Graphics LCD 128x64 pixels, great visibility outdoors
  •         PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
  •         Functional modes:
    •         CW signal generator at any frequency in the range
    •         Tracking generator functionality working together with RF Explorer when connected to the same PC
    •         Sweep generator between any to frequencies in the range, with selectable step size and speed
  •         Expansion:
    • Expansion port for future enhancements (higher RF power modes, additional frequency bands)
    •         Size: 113x70x25 mm
