Stainless steel screw high lift self priming submersible deep well pump, residential water/low water pressure water supply

Stainless steel screw high lift self priming submersible deep well pump, residential water/low water pressure water supply
  • Продавецflimmer.com
  • Список ценUS $69.78piece
  • Продажная ценаUS $69.78piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,2 (127)

Oписание продукта



Deep-Well Submersible Water Pump with Control Box DC48V

  --for Solar Panels or Battery

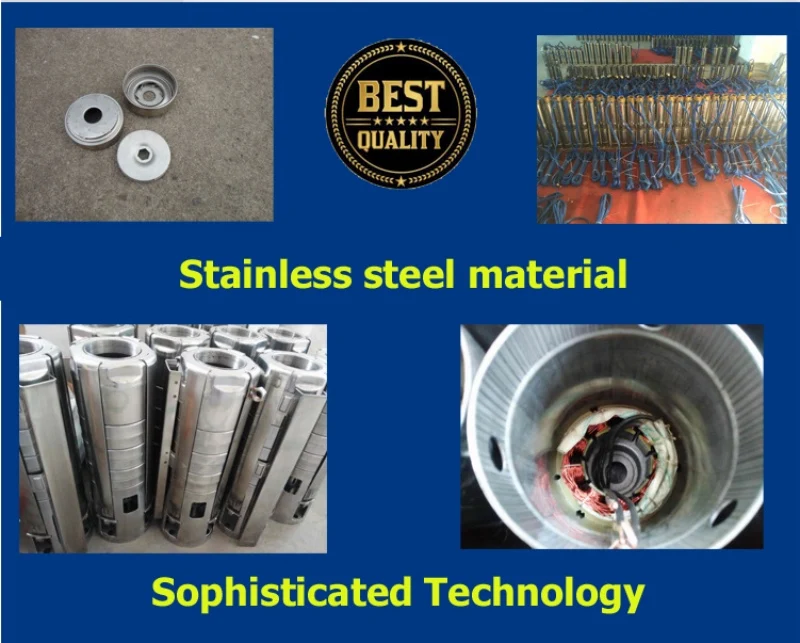

  • Stainless stell case, 100% all copper motor,
  • High presision rotor,  High efficiency bearing .



solar pump main 1



Solar Pump Technical Data



Model

Max Pump Head

Rated Pump Head

Max Pump Flow

Rated Pump Flow

Pump Power

Voltage

SUN1.8-D48-16-120

16m

9m

1800L/H

500L/H

120W

DC48V

SUN2.0-D48-18-150

18m

13m

2000L/H

700L/H

150W

SUN2.5-D48-30-200

30m

20m

2500L/H

700L/H

200W

SUN2.6-D48-40-400

40m

30m

2600L/H

1000L/H

400W

SUN2.7-D48-52-550

52m

40m

2700L/H

1000L/H

600W

SUN3.0-D48-63-600

63m

48m

3000L/H

1000L/H

600W

SUN3.0-D48-78-750

78m

60m

3000L/H

1000L/H

750W

SUN3.0-D48-22-300

22m

16m

3000L/H

2000L/H

300W

SUN4.0-D48-33-550

33m

22m

4000L/H

2000L/H

550W

SUN5.0-D48-40-750

40m

33m

5000L/H

2000L/H

750W



Model Name Description:

  • SUN-Title of Sun series products .
  • The first number : Max Flow , T/H .
  • The second number : DC Voltate.
  • The third number : Max Head .
  • The last number : Rated Power of the pump .
  • For example :  SUN1.8-D48-16-120 , it means SUN series pump , Max flow 1.8T/H (1800L/H) , Max head 16m , 120w rated power.

Pump Data Description:

  • Pump Flow: the pump capacity , Ton per hour(T/H) or Litre per hour(L/H) , Gallon per minute (GPM) . 1GPM=232.5L/H=0.232T/H
  • Pump Head/Lift :The head of the pump is the height at which the pump can lift water.  1m=3.28f

Model

Solar Panels (W)

Pump Speed

Height

MM

Gross weight kg

Outlet size

MM

Diamater

MM

SUN1.8-D48-16-120

180

6000RPM

420

10

32

75

SUN2.0-D48-18-150

225

420

10

SUN2.5-D48-30-200

300

440

10

SUN2.6-D48-40-400

600

440

10.2

SUN2.7-D48-52-550

750

510

10.5

SUN3.0-D48-63-600

900

510

11.1

SUN3.0-D48-78-750

1125

510

11.6

SUN3.0-D48-22-300

450

440

10.2

SUN4.0-D48-33-550

825

510

10.5

SUN5.0-D48-40-750

1125

510

11.6



Note: Solar Panels are not included .



15-20%





Control Box Protection functions

  • high voltage protection
  • Low voltage protection
  • over-current protection
  • stalling protection
  • open phase protection
  • Start to protect
  • Prevent the protection
  • controllers, temperature limited  frequency protectio







pump 5

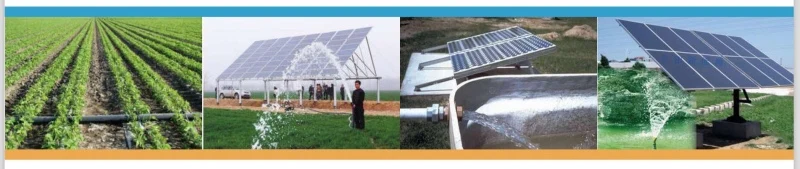

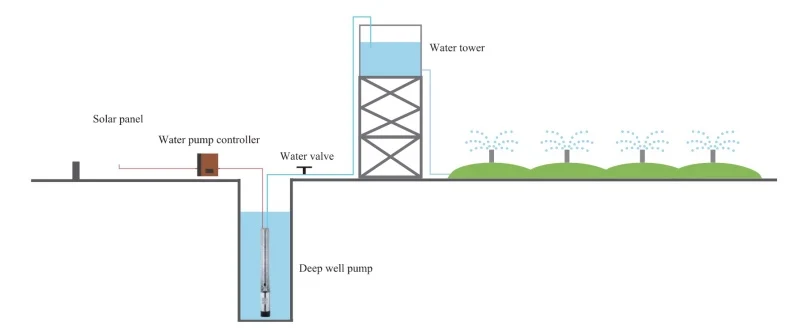

Solar pump application area:

This project products are mainly used in dry region for irrigation of agriculture .
It can be used for drinking water .
The living condition could be much improved .
It also can be used for fountains .

pump 2pump 3

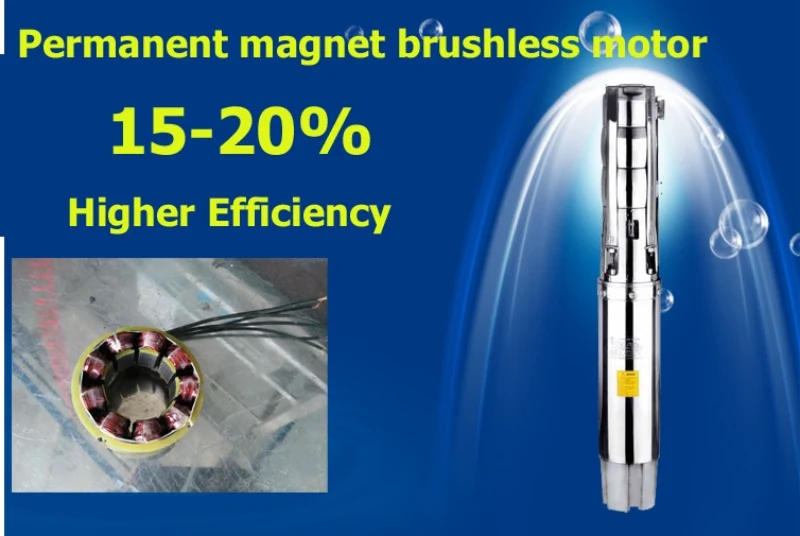

Advanced Technology:

1. Application innovation .
Compared with the traditional alternating current machine , the efficiency is improved 25% by the permanent magnetism, direct current , brushless, non-sensor motor.
2. Technology innovation
  Adopt double plastic package for rotor and stator, motor insulation >300m, the motor security was more improved .
3. Structure innovation
  Convenient installation and environmental protection .

pump 4



caizhi

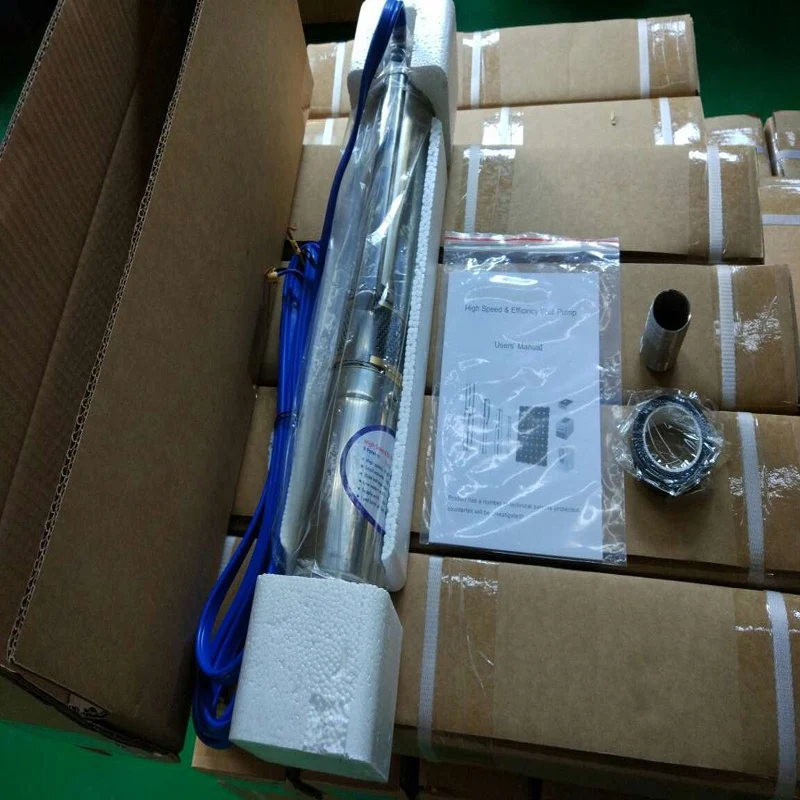

  Packing and Shipping :

real packing

Packing list :

  • 1. Pump with 3 meters cables,
  • 2. Pump controller.
  • 3. Spare parts : screw .
  • 4. Cable connector,
  • 5 .water level sensor

Note : there is not a solar panel included



Return & Refund

30Days Return & Refund .

Warranty

2 years Warranty for replacement or repair , life time parts support and technical support .
