8CH relay switch dmx512 led controller XLR+RJ45 dmx512 decoder dmx512 dimmer

8CH relay switch dmx512 led controller XLR+RJ45 dmx512 decoder dmx512 dimmer
  • Продавецflimmer.com
  • Список ценUS $31.10piece
  • Продажная ценаUS $31.10piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,3 (244)

Oписание продукта

LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, we have engaged in R&D of LED lighting control technology since 2001.

As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more intelligent, energy-saving, healthy and comfortable lighting life. Widely applied to global lighting industry, innovative products and solutions were offered by LTECH suiting a diverse range of projects and requirements from LED lighting industry.

Customer-orientation and advanced technology have brought LTECH worldwide trust and support. In quicksilver lighting market, LTECH insists on developing high-tech innovation, committing to providing first-class products and best solutions, creating more values for customers.

  DALI Member

       KNX Member
       ZigBee Member
       International High-Tech Enterprise
       National AAAA level Good Standardizing practice certificate
       NEEQ Innovation top 100 Enterprise
       Private S&T Enterprise
       SGS ISO:9001-2008 approved

1-150619142049Artnet-DMX-8-12Artnet-DMX-8-13Artnet-DMX-8-11

Brief introduction

Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert the Artnet network date package into DMX512 date, adopting high-speed ARM processor, stable and reliable working. Following Art-net standard protocol, it supports RJ45 network interface and standard DMX512 output interface.

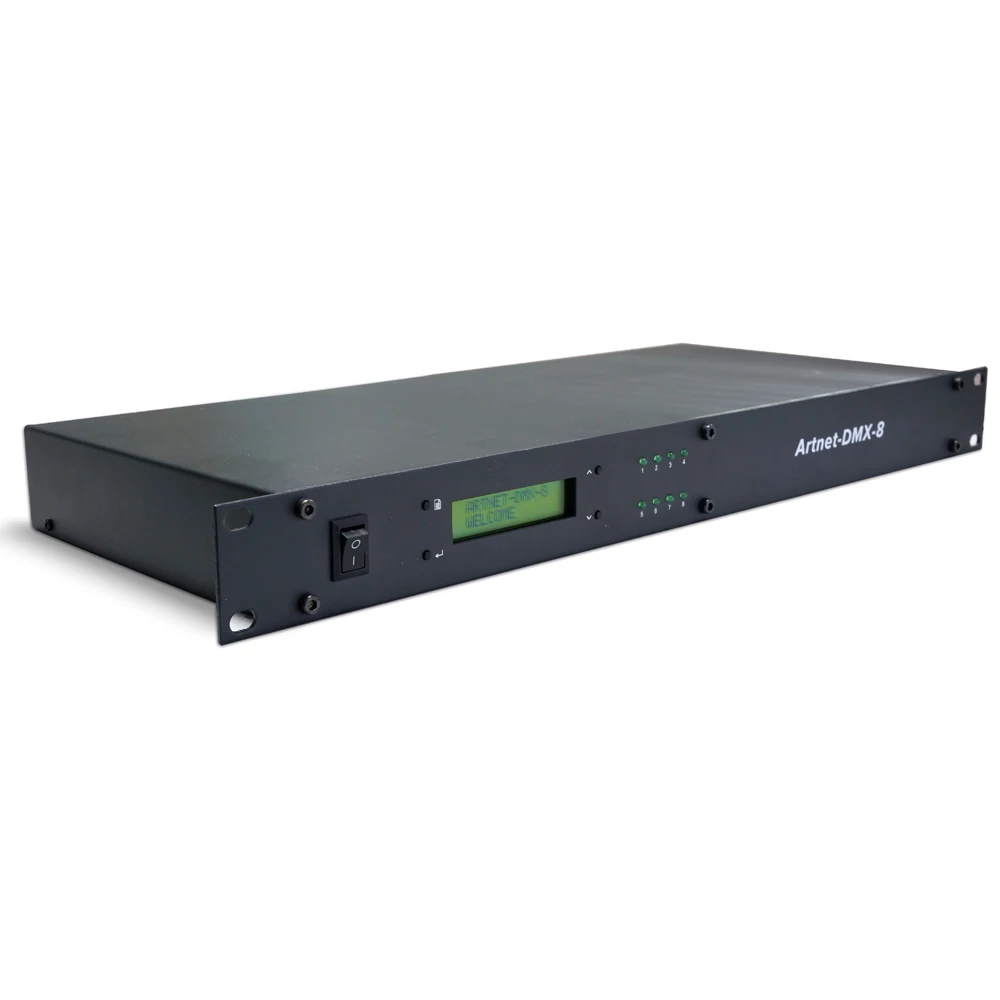

Artnet-DMX-8 use standard 1U(19" ) chassis architecture, convenient installation in professional cabinet, easily operation setting with LCD display.
Artnet-DMX-8 provides 8 standard DMX512 data output port, total output 8×512 data.
It is compatible with all the effects lighting control software which support Art-net protocol, widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX-512 data, especially for TV station recorded scene, stage performances, entertainment and so on.

Performance Features

 Based on Artnet protocol network data communication, accept network DMX data.
 Can set two different IP address in each controller.
 Set different network segments to avoid multiple sets Artnet data interference.
 Manage Artnet on broadcast mode or unicast mode.
 Standard 1U(19" ) chassis architecture, convenient installation in the standard cabinet.
 With LCD screen display, convenient operation intuitive settings

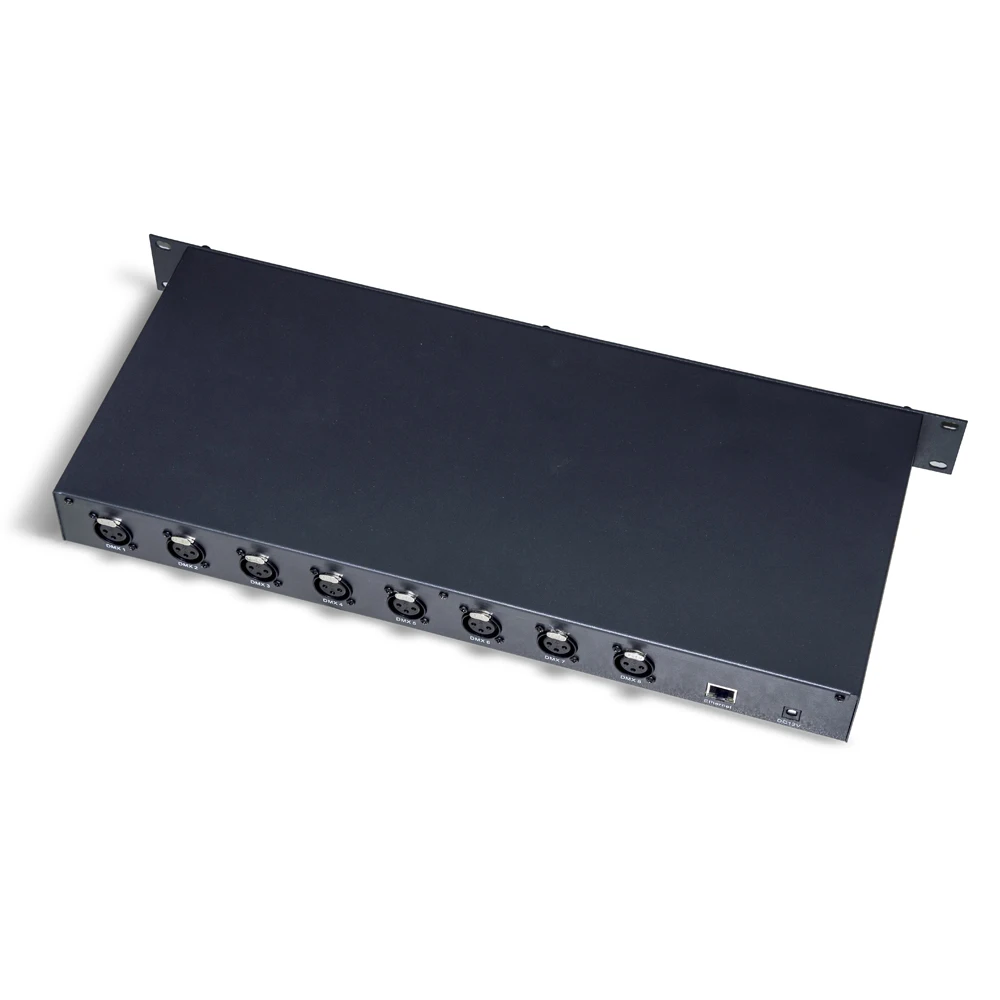

 Provides 8 standard DMX512 data output port and can output total 8×512 data.
 Compatible with the light software based on Artnet Protocol, control stage lighting and LED lighting simultaneously.

Product parameter

Artnet-DMX-8 4096 channels
Power input DC5V-DC24V (with a power adaptor)
Input signal Artnet
Output signal DMX512
DMX channels 8x512 channels
working temperature -20-65C
Dimension L482.6xW200xH44mm
Package Size L550xW265xH100mm
Weight (G.W) 2200g

Artnet-DMX-8 1_Artnet-DMX-8 2_Artnet-DMX-8 3_Artnet-DMX-8 4_Artnet-DMX-8 5_Artnet-DMX-8 6_Artnet-DMX-8 7_Artnet-DMX-8 8_
Artnet-DMX-8 9_Artnet-DMX-8 10_Artnet-DMX-8 11_Artnet-DMX-8 13_Artnet-DMX-8 14_Artnet-DMX-8 15_Artnet-DMX-8 16_
Artnet-DMX-8 17_Artnet-DMX-8 19_Artnet-DMX-8 20_

Package Included:

1 pc Artnet-DMX-8 artnet to DMX converter
