18W DC 12V Water Pump Amphibious 500L/H Solar Circulation Pump/Booster Pump Brushless Motor for Fish Tank/Garden/Aquarium etc

18W DC 12V Water Pump Amphibious 500L/H Solar Circulation Pump/Booster Pump Brushless Motor for Fish Tank/Garden/Aquarium etc
  • Продавецflimmer.com
  • Список ценUS $22.50piece
  • Продажная ценаUS $22.50piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,4 (825)

Oписание продукта

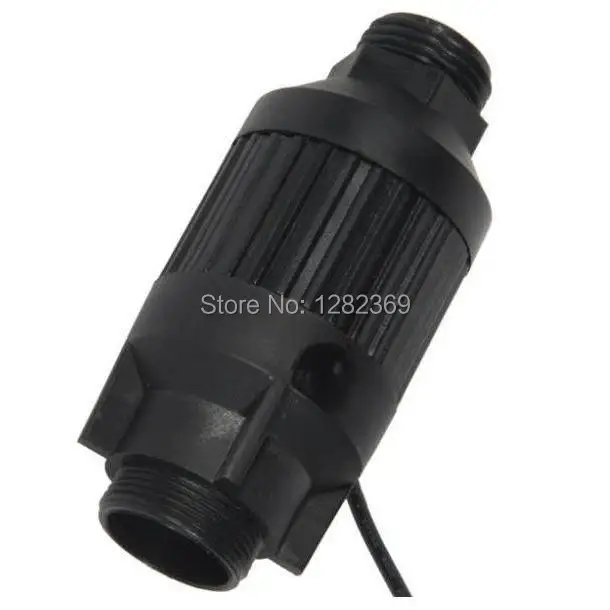

DC 12V 18W 1020LPH 4.5M, Mini Pipe Booster Inline Brushless DC Water Pump Small Fountain, Aquarium, Water Circulation, Micro Pump

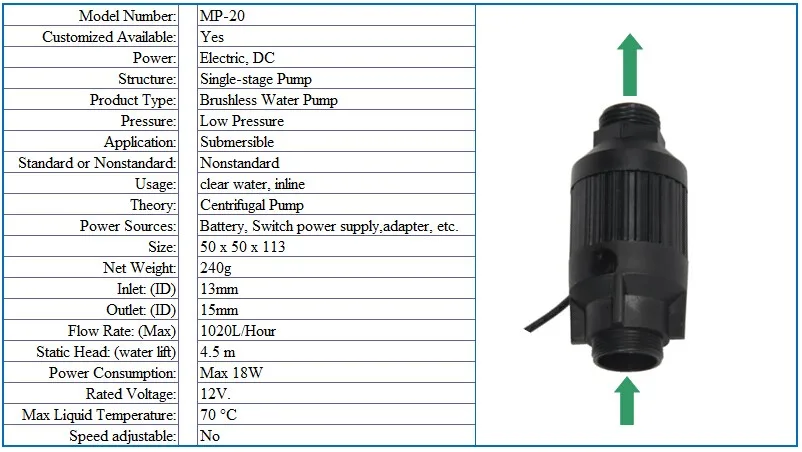

Model Number: MP-20
Customized Available:Yes
Power:Electric, DC
Structure:Single-stage Pump
Product Type:Brushless Water Pump
Pressure:Low Pressure
Application:Submersible
Standard or Nonstandard:Nonstandard
Usage:clear water, inline
Theory:Centrifugal Pump
Power Sources:Battery, Switch power supply,adapter, etc.

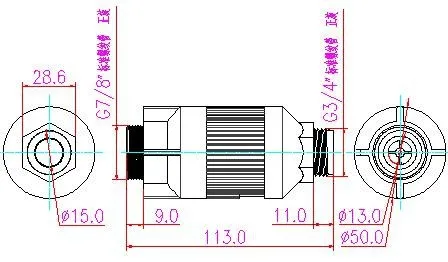

Size:50 x 50 x 113
Net Weight:240g
Inlet: (OD)7/8 Inch Thread (M29mm)
Outlet: (OD)3/4 Inch Thread (M26.5mm)
Flow Rate: (Max)1020L/Hour (222.5 gallon per hour)
Static Head: (water lift)4.5 m (14.7 Feet)
Power Consumption:Max 18W
Rated Voltage:12V.
Max Liquid Temperature:70 °C (158°F)
Speed adjustable:No

Cable/Wire Length:                     300mm



Lifespan: >20000Hr (at rated speed)


Working Environment: Liquid: From weak acid to weak base, workable in water (Submerged)


Max Noise: 1M, distance <40dB



Liquid Temperature: ≤70°C


Application: Pipeline hot water circulation, Solar water heater, Small fountain, Aquarium, etc.





Notice:



When ordering pump, please send message to me the pump’s technical factors as:

  1.     Your power source type: solar panel, battery, switching power supply
  2.     The power source’s rated output voltage, power(watt)
  3.     The pump using: in water, on land, or both.
  4.     Liquid type and its max temperature.



MP-20 12V SHEET



38-20





3820[2] .jpg





















 10 -2.jpg

















MP-20 HP1.JPG







MP-20 HP3.JPG









MP-20 HP2.JPG









MP-20 HP4.JPG

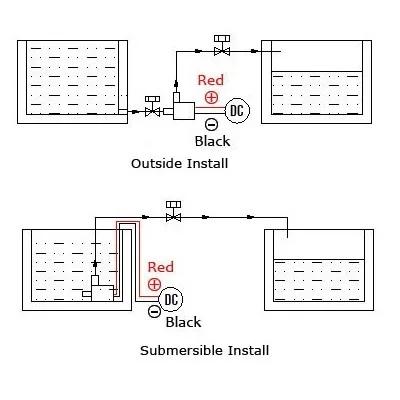

  1. BLDC pump is not self-priming pump. It must be inlet under the liquid level or completely submerged in the liquid.
  2. Keeps the water clean, avoiding the impurities entering the pump. Inlet filter will be useful when necessary.
  3. Dry run ( pump in running without water or liquid in the pump’s cave) will damage the pump.
  4. Ensure the water is clear, regular checks can increase pump\'s lifespan.

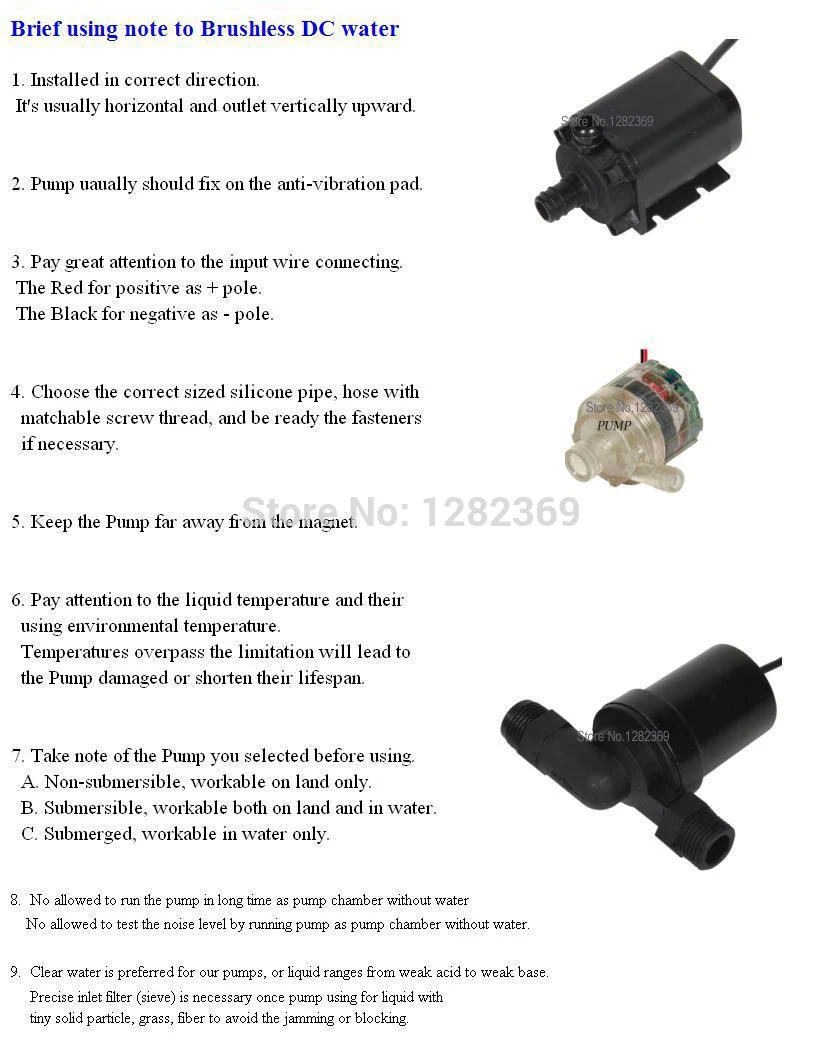

   Step 2.   Using note:



NOTE 2.jpg



  Order process and our service

1.   Sample testing

2.   Confirm PI and shipping cost

3.   Sign order and prepaid done

4.   Producing and the balance paid

5.   Shipping

6.   Tracing on and follow ups.
