Oписание продукта

HDMI 4x4 True Matrix HDMI Switch Switcher 4 in 4 Out V1.4 4Kx2K 3D EDID with Remote and power adapter for DVD HDTV


Dear customer:

Thank you for purchasing this product. For optimum performance and safety,please read this instruction carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
Our series of HDMI converters,switchers,extenders,matrixes and splittersare designed to make your A/V device using more convenient ,more comfortable,
more productive and more cost-efficient.

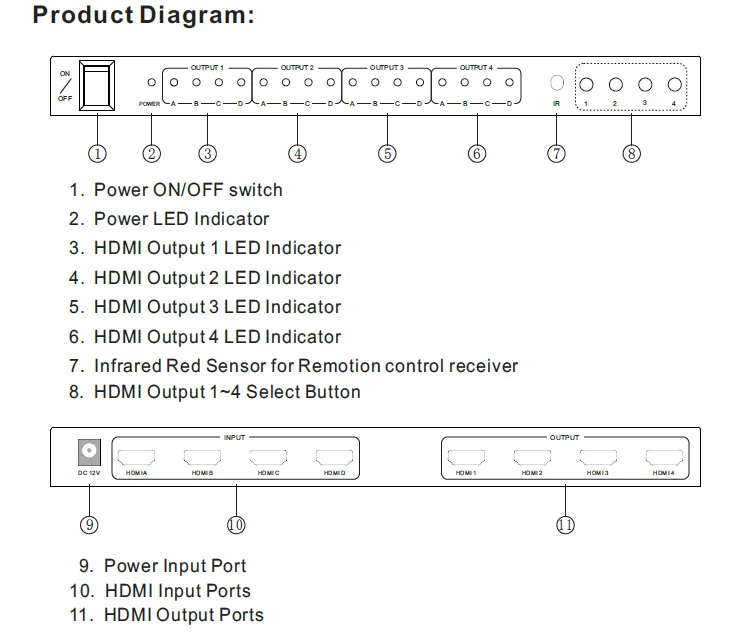

The 4x4 HDMI Switch allows to access to multiple HDMI sources. It allows 4 HDMI devices to be switched easily to 1 to 4 compatible monitor or projector through
HDMI. The Product supports resolutions up to 4Kx2K 24/25/30Hz. It also supports EDID RAM. The Product can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise,space and security concerns,data center control,information distribution,conference room presentation,school and
corporate training environments.


Packaging content

1. HDMI 4x4 True Matrix x1
2. Remote controller x 1 (Not include battery inside) ( CR2025 3V)
3. User Manual x 1
4. DC 12V Power Adapter x1


132
Features:
1. Supports 4 HDMI input ports.
2. Supports 4 HDMI output ports.
3. Compliant HDMI 1.4 specification.
4. Serial data rate at up to 3.0Gbps, capable of supporting the following
digital video formats in Deep Color Mode at up to 36 bits (12 bits/color).
5. Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
6. Supports Digital audio format, such as DTS-HD/Dolby-trueHD/LPCM7.1
/DTS/Dolby-AC3/DSD.
7. Supports signal retiming.
8. Supports Equalizer TMDS Output: 25MHz–300MHz TMDS clock.
9. Supports up to 300MHz TMDS clock rate(4Kx2K)for HDMI input.
10. Supports EDID RAM.
11. Supports 1080P input up to 15 meters AWG26 HDMI standard cable length,
output up to 20 meters AWG26 cable length.
12. Inputs can be switched with the IR remote control, also can be controlled
by button.
13. Extend the transmission distance and improve transmission signal.
14. Compatible with DVI through a HDMI to DVI adapter.
15. LED indicate signal and power mode.
16. No loss of quality.
17. Install in minutes.

Specifications:

Maximum Single Link Range....................................24/25/30fps/4Kx2K
HDMI version........................................................HDMI 1.4, HDCP 1.4
HDMI resolution......24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
Supports video color format……..................24bit/deep color 30bit, 36bit
Vertical Frequency Range........................1080p@60Hz; 4K x 2K@30Hz
Supports audio format…......................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth…….................................................................300MHz
Max band rate……................................................................10.2Gbps
Input/Output TMDS signal ……..........................0. 5~ 1. 5Volts p- p( TTL)
Input/Output DDC signal ……......................................5Volts p- p ( TTL)
1080P Input cable distance……........ 15m AWG26 HDMI standard cable
1080P Output cable distance…….....≤20m AWG26 HDMI standard cable
4KX2K Input cable distance…….........≤5m AWG24 HDMI standard cable
4KX2K Output cable distance…….....≤10m AWG24 HDMI standard cable
Max working current……...............................................................1.5A
Operating Temperaturer……...........................................( - 15 to + 55℃)
Operating Humidity range…….................5 to 90% RH ( No Condensation)
Dimension ( L x W x H)…..............................................275x155x25mm
U2U1


Safety Precautions:

Do not expose this product to water source or an environment that has excessive moisture.
Do not operate the product when hands are wet.
Place this product on a flat surface and keep it out of reach of children.
Please turn the power off when it is not in use for an extended period of time.
Do not attempt to dismantle the device on your own.
Please use the power adapter device.

Recycling the Product:

To dispose this product properly, please follow the recycling process
regulations in your area.

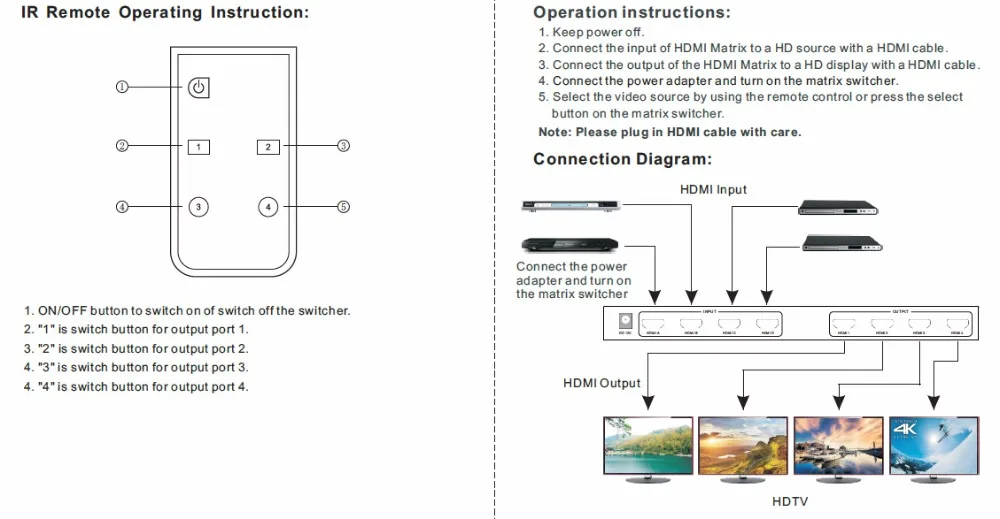

Trouble shooting guide:
Before power on, please check the connection line carefully. And make
sure that all interfaces are correctly connected.
The common trouble shooting way shows below:
1,Make sure that the TV is on and has
connected with the switcher.
2,Check if the signal source is on and well connected
