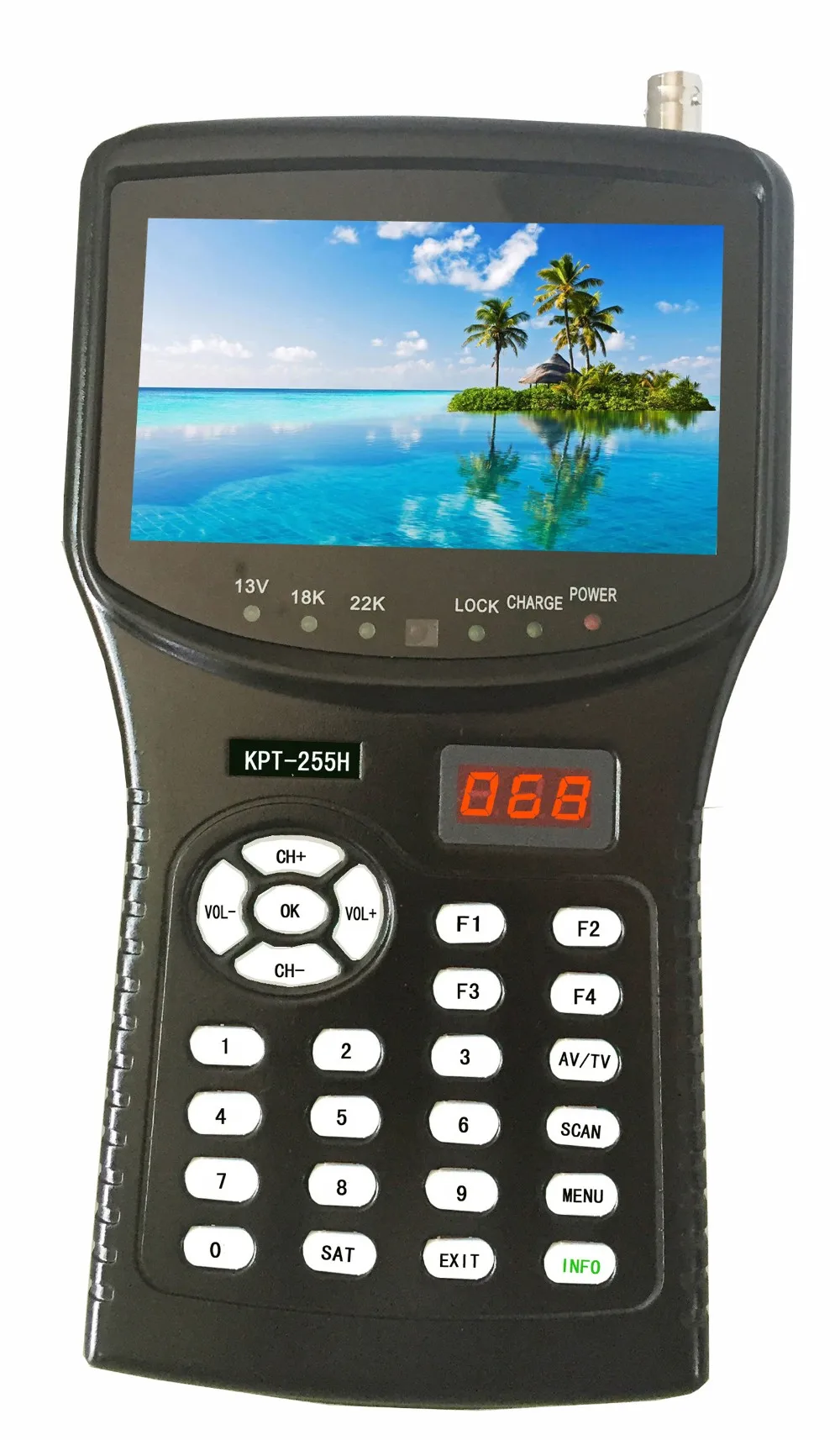

New Arrival ! 4.3 inch DVB-S DVB-S2  HD satellite finder KANGPUT 255H Satfinder digital satellite signal finder







Function

4.3inch handheld multifunctional monitor&satellite finder is a product for the installation of satellite TV test tools.Set the satellite TV signal and image shows test, radio, television, monitoring function.with auto scan/blind scan/TP scan .Using TFT LCD display image,LED backlighting with low power consumption.Built-in large capacity and high-performance lithium batteries for the integration of high-tech electronic products

Low power consumption LED / high-resolution digital display TFT LCD .built-in 2200mAh Li-lon battery, do not need an external power supply, find satr working time is about 3-4 hours,with high brightness flashlight,convenient for operation at night.AV output and input function. with DC12V output(use of camera).optional remote control.Satellite images and signal quality can be displayed through the LCD. Unique starsearch guidance function and satellite finder management, Built-in protecting circuits for LNB TV tuner. Finder satr change alarm prompt signal quality,

support DVB-S/S2&MPEG-4 image & signal for free program and warming..13V18V/22K/signal lock indicator locatedDue to the use of handheld structure, this machine is small in size and light in weight. Equipped with installation tool backpack, it is more convenient to carry, it is a professional equipment for satellite TV receiving system engineering, control engineering and technicians


Specification
TFT LED 4.3"(109mm); Display size:97*55mm(16:9 display)
Dots pixels:480*272(391680Pixes).
Multi languages :English;Cesky;Dansk;Fancais;Deutsch;Italiano;Persian;Arabe; Israel;
Input signal:DVB-S/S2
Input level:-80~-20dBm
Frequency range:950MHz-2150MHz (DVB-S/S2)
LNB input : F type
Input impedance: 75 Ω (F)
LNB Power supply:13/18V,max400mA (DVB-S/S2)
Minimum electric level:About
35dBuV (noise) : Maximum
Electric level:About 90dBuV
Show signal strength:(analog) dB on LCD/monitor Sateliite Management :Edit,Add,Delete
LNB Switch control:22KHz(Turn on/off/auto)
DiSEqC switch:1.0, 1.1, 1.2, USALS
Symbol rate:2Mbps~45Mbps .
Voice patterns: dual channel
Sampling rate:32,44.1 and 48KHz
Demodulation chip:QPSK(SCPC and MCPC compatible)
Satellite signal video decoding: DVB-S/2 CBS-2,MPEG-4 signal alarm and signal display
HDMI Ouput:576i, 576P, 720P,1080i,1080P HD signal output.
Color System: PAL\\NTSC
Lithium battery:DC 11.1V 2600mAh(built-in).
Input voltage:DC13.5V 1.5A
Output voltage:DC12V.
Dimensions:212*123*48mm
Weight:540g (including battery pack).

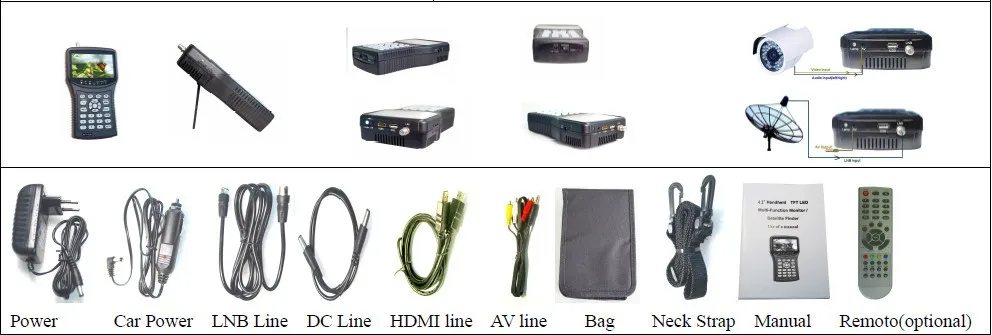

Accessories
1. DC13.5V 1.5A adapter      1piece
2. Bag                        1piece
3. LNB(F Conversion head)   1piece;
4.F fast line                    1piece
5. Car Power                1piece
6.AV Line                      1piece
7. DC line                   1piece

8. HDMI Line                   1piece
