1pc New Wireless Mach3 MPG Pendant Handwheel for CNC Mac.Mach 3, 6 axis USB handheld unit Industrial remote control

1pc New Wireless Mach3 MPG Pendant Handwheel for CNC Mac.Mach 3, 6 axis USB handheld unit Industrial remote control
  • Продавецflimmer.com
  • Список ценUS $134.20piece
  • Продажная ценаUS $134.20piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,9 (441)

Oписание продукта

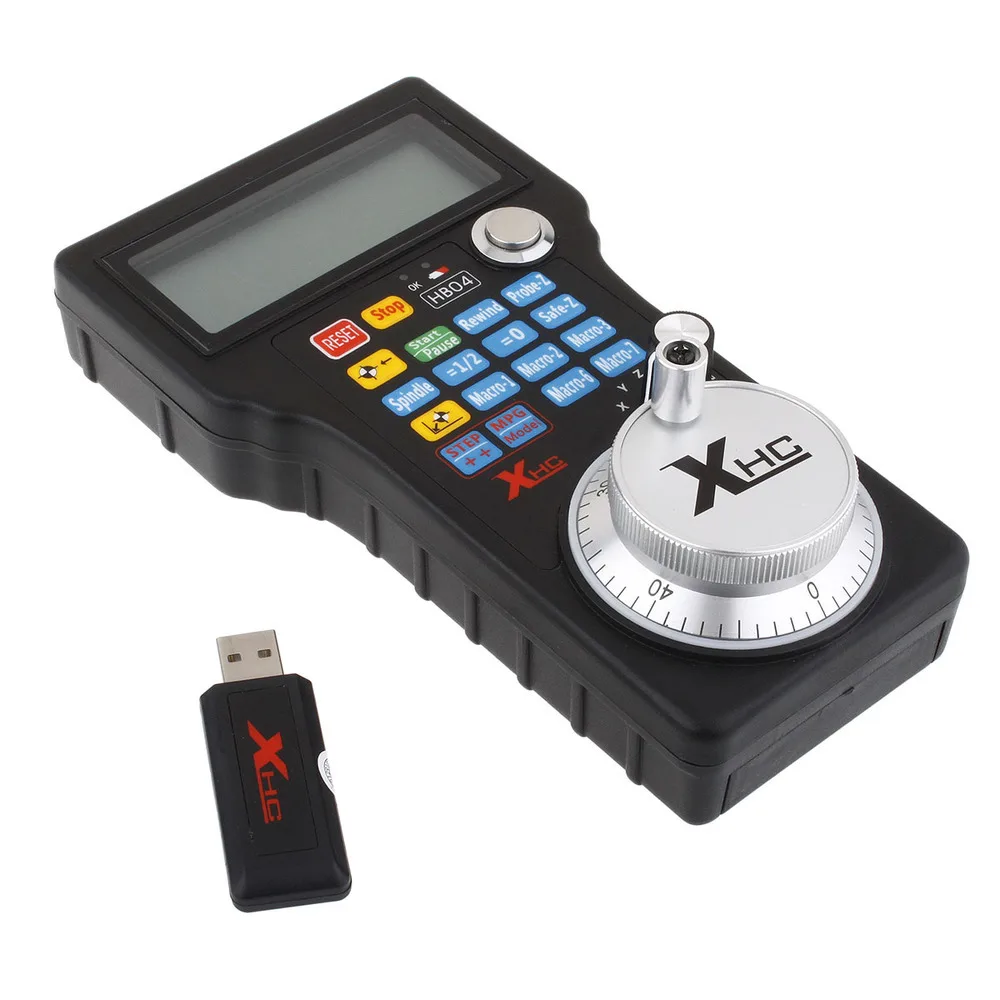

New Wireless USB MPG Pendant Handwheel Mach3 For CNC Mac.Mach 3, 4 axis controller CNC Wireless Handwheel



Picture showing

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

Description:



The RF is Standard with 2.4G ISM ,the Tx power is 0DB and the RX sensitivity is -98DB
The RF has 64 channels,the channel gap is 1Mhz
The transmission distance is further than 15 meters  with no barrier
The  protocol  Designed with high performance; Low power consumption;Automatic learning ID Number
To jump frequency Adaptively when noised ,which can work with 2.4G wireless Mic ,Wlan and Bluetooth etc. devices.
32 sets Wireless  Handle work fine at the same time in one room ,with  no-interference each other
has the function of the hand wheel, 100PPR the manual pulse generator output

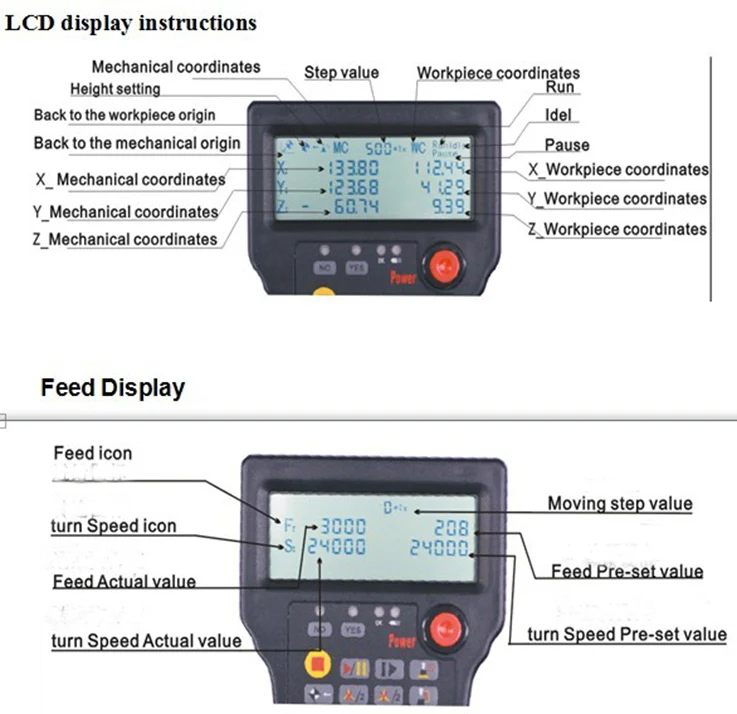

display, real-time display of the machine the workpiece coordinates, mechanical coordinates. Coordinates X, Y, and Z three-axis with the screen display

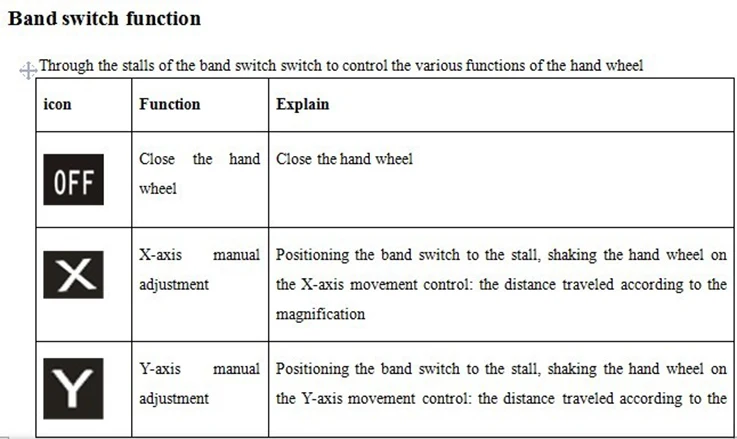

axis selection function, the band axis selection switch, you can choose the X, Y, and Z axis
With the function of the hand wheel boot: hand wheel guide, facilitate the adjustment process.


ShuttlePro Installation

1. When Mach3 is installed , there will be a folder created named ?PlugIns? in the Mach3 folder. This folder is the location to put and Plugin files that you want Mach3 to know about. Place
?ShuttlePro.dll? in the \\Mach3\\PlugIns folder. Check and make sure it is there.
2.Setup diver for automatically set the knife height function
M930.m1s copy the installation directory to the MACH3
..\\Mach3\\macros\\Mach3Mill
3. Now that the ShuttlePro.dll file is in \\Mach3\\PlugIns, the next step is to connect  the huttlePro. If you are certain that your ShuttlePro is working and your hardware is working then you can simply plug in the ShuttlePro to one of the USB ports.

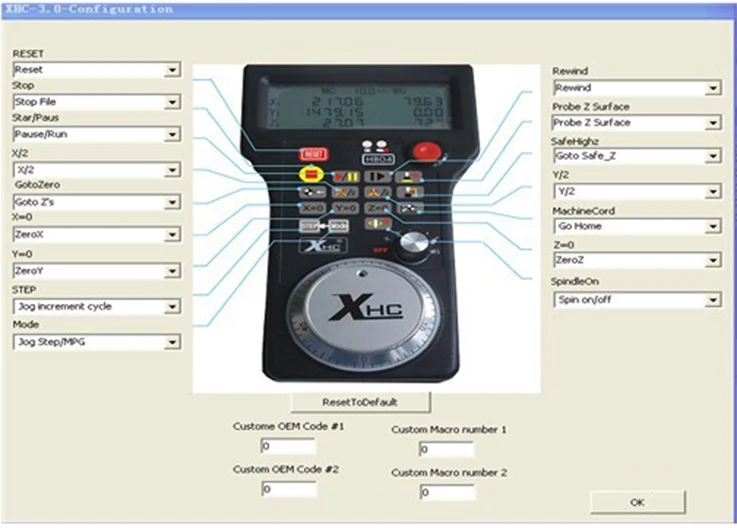

4. Once the ShuttlePro is connected, start Mach3 and go to the ?Config? menu choice and select ?ConfigPlugins?. You should see the ShuttlePro choice with a green checkmark in front of it. If it is not checked, you can check it. The checkmark means that Mach3 found the ShuttlePro on tartup. Click the ?CONFIG? in yellow and set the buttons as you wish.
5. Once you have the proper button selected in the Mach3 ShuttlePro Plugin CONFIG menu, your Shuttle device should be working properly.
Packaging include :

20 * Wireless USB Receiver
20* CNC Wireless Remote Handle
20 * CD for manual and mach3 software
20*English Manual
