Oписание продукта

Portable Digital LCR Meter AutoRange Component Capacitance Inductance Tester Large LCD Display USB Charge LCR Tools Data Record

DSC_6559_DSC_6560_DSC_6530_DSC_6531_DSC_6532_DSC_6539_5289

DSC_6528_

Special Features:

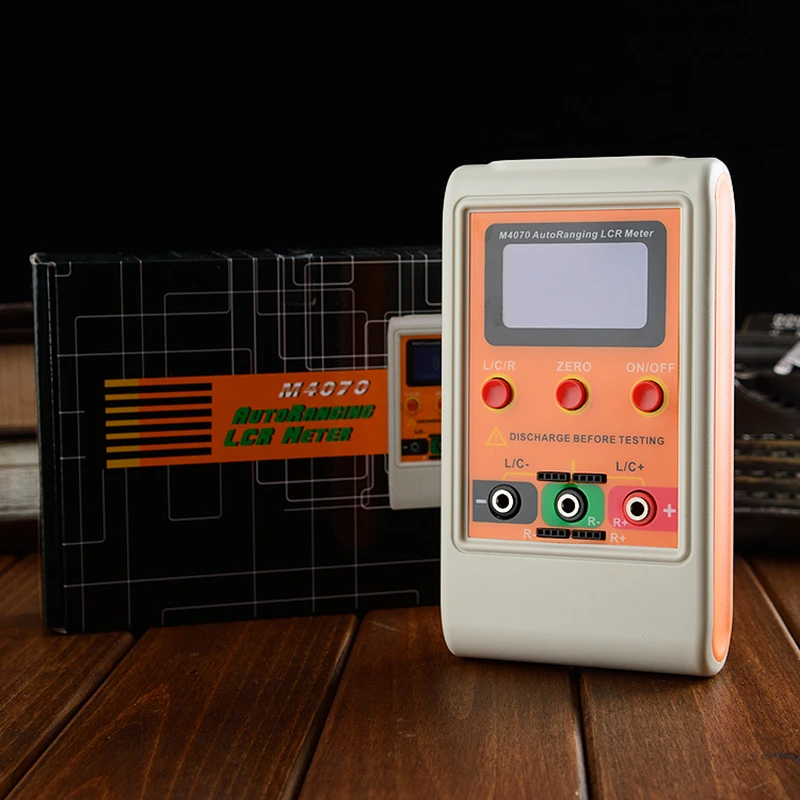

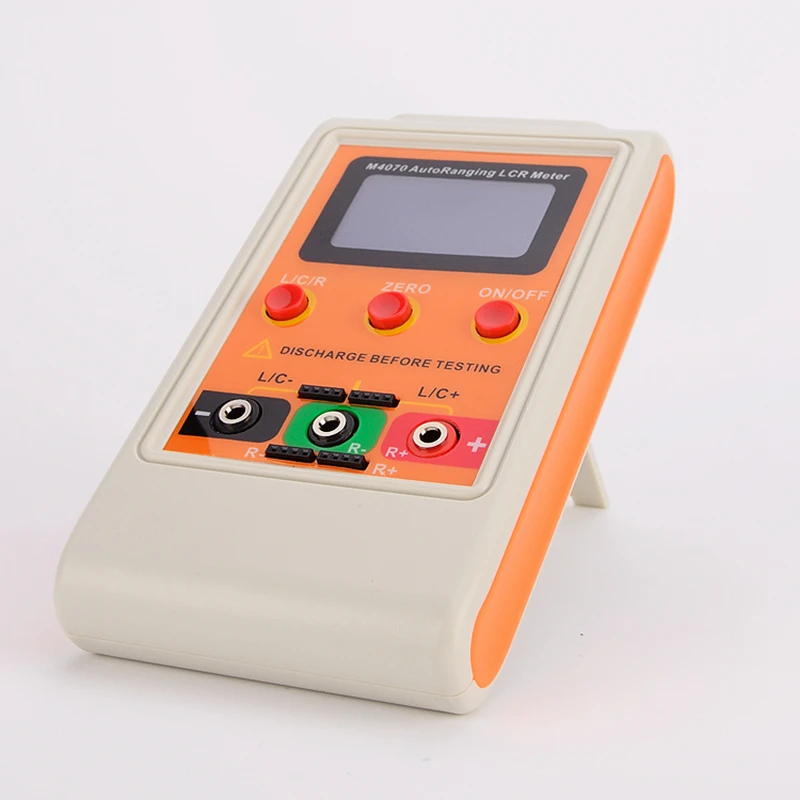

M4070 LCR meter is autoranging component tester, can drive up to  500 KHz, suitable for small value capacitor and inductor measurement. It  provides very stable and high resolution measurement up to 5 digits.

Meter can  measure 0.00pF to 100.00mF capacitance, 0.000uH to 100.00H and 0.00Ω  to 10.000MΩThis  meter is using two technique measurement,

LC oscillation and RC oscillation.

LC  is much suitable for small value measurement and RC for high value capacitance.

*Discharge Capacitor before Testing!!

Features:

-          Fully  auto-ranging designed

-          High  resolution, up to 5 digit display, most finest resolution: 0.01pF, 0.001uH,  0.01R

-          High  stability and measurement range for L/ C/ R

-          USB  charging with rechargeable battery inside

-          Large  LCD display with backlight

-          USB  PC program, can take record and pass and fail component sorting function.

Specification:

Model:

M4070

LCR Meter Series

LCR Testing Parameter

Main Parameter: L / C / R

Testing frequency



C: 10 to 500Khz





L: 10 to 360Khz

Testing Method



Auto select LC and RC Oscillation

Calibration



Power on auto calibrate with internal reference capacitor

Testing voltage

~1.5Vrms

Best Tolerance

L: 1% +1 Digit





C: 1% +1 Digit





R: 0.5% +1 Digit

LCD update or Testing time (* vary on component value)

<3/s,  (e.g. 100mF Capacitor <30s)

Range Selection

Automatically







Zeroing

Open / short circuit







Terminal

Mini-USB(Virtual Com Port)

Display Range

C

 0.00pF ~100.000mF  (pF/nF/uF/mF)

L

 0.000uH ~  100.000H                  (uH/mH/H)

Hz (LC Oscillation Frequency)

0 to 900000Hz

(s)  (RC Constant Time)

0.000 to 99.999

R

 0.00 Ω ~ 10.000 MΩ                        (Ω/kΩ)







LCD Display

128X64 Dot Matrix, with backlight

Fuse Protection



200mA

Charging terminal



Mini-USB (500mA)

Battery



internal 3.7V Li-polymer

Number of Testing Terminal

Main 3, Secondary 4

Reading Display

Max. 99999

Package Content:

1 * Unit M4070

1 * Pair Test Probe
