Oписание продукта

The MINI HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.


Package Including:
    1x 3G HDMI to SDI Converter
    1x 5V1A DC Power Supply Adaptor
    1x Operation Manual

Features
    Shows HDMI source on SDI display.
    SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
    Supports HDMI input timings: 480i 59.94, 576i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60.
    Converts HDMI signal to SDI:
    480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
    720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
    1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
    Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Specifications
    InputPort     1 x HDMI
    OutputPort    1 x BNC (SDI/HD-SDI/3G-SDI)
    SDI Transmission Rates  2.970 Gbit/s and 2.970/1.001 Gbit/s
    In/Output Resolution    480i, 576i, 720p 50/59.94,60 ,1080i 50/59.94/60
    1080p 23.97/24/25/29.97/30/50/59.94/60
    Power Supply DC 5V -12V
    ESD Protection Human body model    ±8kV (air-gap discharge) ,
    ±4kV (contact discharge)
    Dimension                 80mm x 41mm x 25 mm
    Weight             150g
    Operating Temperature               0°C ~ 40°C / 32°F ~ 104°F
    Storage Temperature      -20°C ~ 60°C / -4°F ~ 140°F
    elative Humidity              20 ~ 90% RH (Non-condensing)
    Power Consumption (Max)     5W

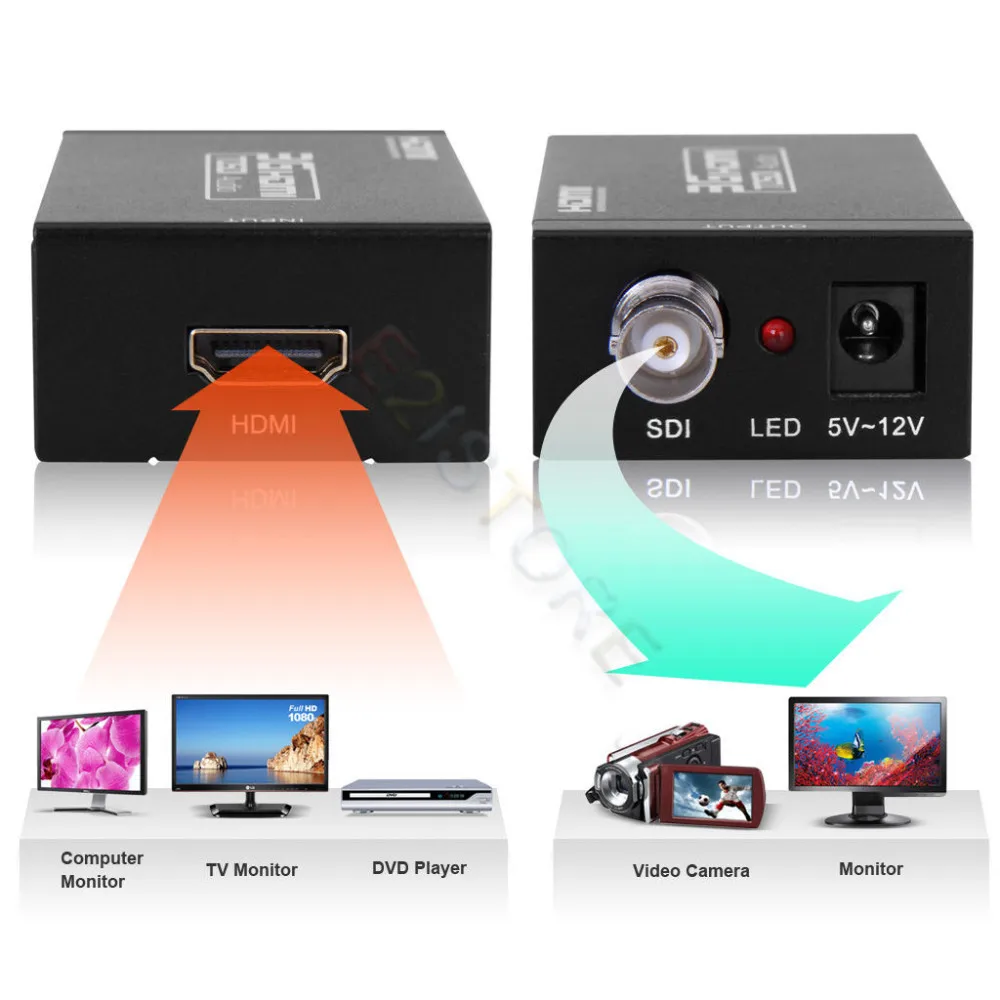

Operation controls and Fuctions
 undefined
1)SDI-OUT: This slot is where you connect the SDI display with coaxial cable .
2)POWER LED: This red LED illuminate when the device is connected with power supply.
3)DC IN: Plug the 5V-12V DC power supply into the unit.
4)HDMI IN: This slot is where you connect the HDMI source with HDMI cable.
