GRBL 1.1 USB Port CNC Engraving Machine Control Board, 3 Axis Control,Laser Engraving Machine Board

GRBL 1.1 USB Port CNC Engraving Machine Control Board, 3 Axis Control,Laser Engraving Machine Board
  • Продавецflimmer.com
  • Список ценUS $25.75piece
  • Продажная ценаUS $25.75piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,5 (700)

Oписание продукта

Diy 3-axis cnc machine parts,laser engraver control board,GRBL control board+3 pieces step motor+spindle+24v power supply



Control board:
specification:

Connection: USB (USB-CH340)

Software: GRBL controller, UniversalGcodeSender

Master chip: atmel 328P (arduino nano)

Stepper motor driver: A4988

Spindle drive chip: MOSFET, the highest 60V (recommendation within 48V, current :within 10A )


Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)

Laser engraving: Support 12v 5a laser
Step motor:
Fuselage length 34MM,
Current 1.33A, 12v
Torque 0.25N / M
4 lines
spindle
er11 chunk
775 spindle
power supply
24v 5A
3 axisHTB1wRDUQFXXXXXkXFXXq6xXFXXX3
the software is free , please contact with us.

cnc software :

HTB1WBkYLFXXXXXJaXXXq6xXFXXXM

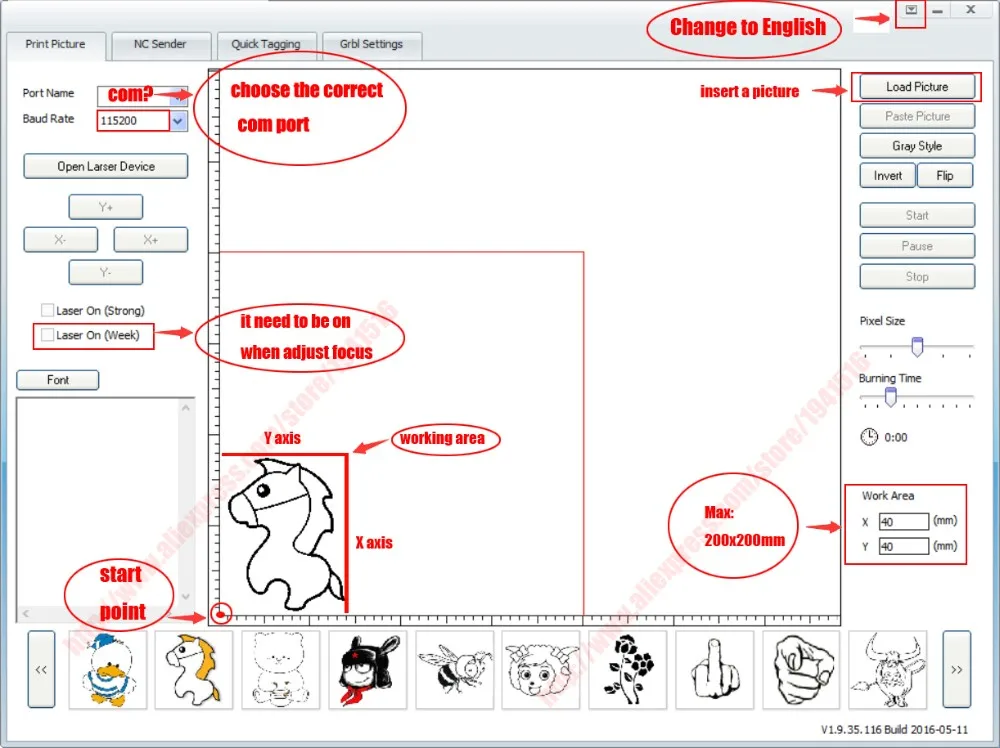

laser engraving software :

HTB1nFPMLXXXXXc.XVXXq6xXFXXXu
