Oписание продукта

Mach3 Wireless Electronic Handwheel USB wireless channel for CNC router



Packing List :

1 pcs Wireless 4 or 6 Axis MACH3 Handwheel (2017 New Type)
1 pcs USB Wireless Receiver


What`s the difference between old type ane new type WHB04B  ?

TIM20180629122649_



Description :

1. Applications
        WHB04B has 2 series:
           1. WHB04B-4:support 4 axis with x,y,z,a
           2. WHB04B-6:support 6 axis with x,y,z,a,b,c
       application on mach3 cnc system in windows platform.

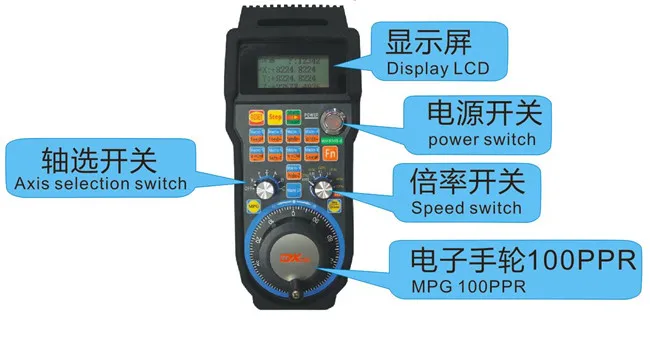

2. Product Overview

2



3. Application circut



1



4. Key feature
1 .Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB,High receiver sensitivity-98DB.
32 hopping channels,the channel frequency gap is 1Mhz.
the transmission is encrypted, auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.
2. LCD display
Display the X Y Z A B C axis work and machine coordinate data.
Display the spindle and feed speed.
The lcd display data with background light.
3. Axis/Step band switch
To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.
4. support 10 macro function button

5.
ParameterDescription
Frequency bandsISM,433MHZ
Supply voltage2 AA batteries
Wireless transmission distance40 meter
MPG Encoder100PPR
Function Key16 Keys(support 10 macro function button)
Output power10DB
Receiver sensitivity-98DB
Maximum axis6 axis
LCDDot LCD with background light
MaterialThe material is ABS and PC with anti-impact and heat-resistant. With protected Silicon coat

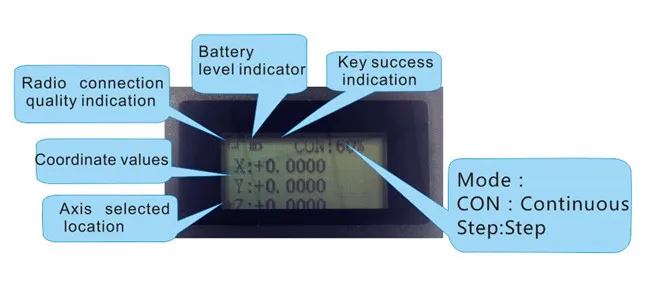

6. LCD Display overview

3

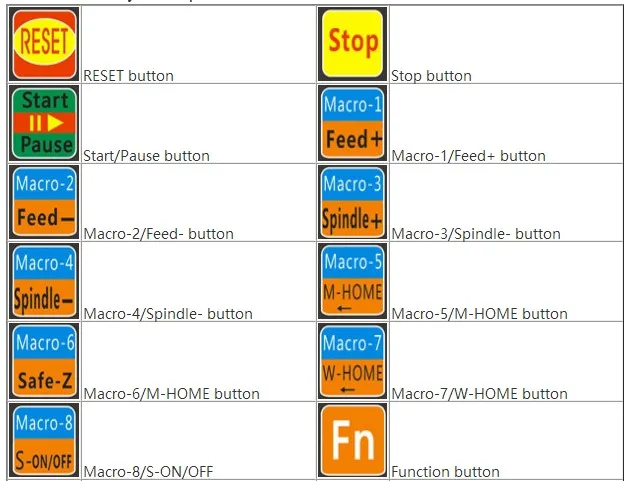

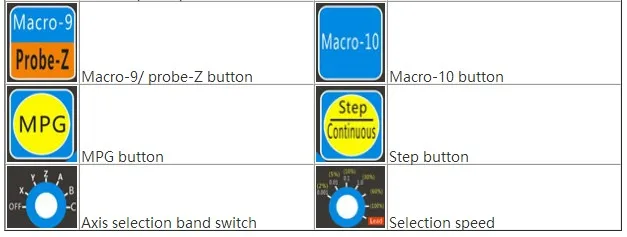

7.  Funciton key descripiton

1122
