Kaitian 3D Laser Level 360 Nivel Laser 12 Lines Lazer Level 3D Tripod 5/8 Construction Tool with Receiver Bracket Building Tools

Kaitian 3D Laser Level 360 Nivel Laser 12 Lines Lazer Level 3D Tripod 5/8 Construction Tool with Receiver Bracket Building Tools
  • Продавецflimmer.com
  • Список ценUS $100.96piece
  • Продажная ценаUS $100.96piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,2 (808)

Oписание продукта

Kaitian Nivel Laser 12 Lines Laser Level 3D 360 Rotary Horizontal Vertical Magnetic Bracket construction tools 3D Level 12 Lines







960X400 MR3D5



950x340_01950x340_02950x340_03



Kaitian Laser Level MR3D5L height





MR3D5L









Kaitian Nivel Laser 12 Lines Laser Level 3D  Model KT-MR3D5LAR / KT-MR3D5LADR

Kaitian  Laser Level  3D 12 Lines  Specification

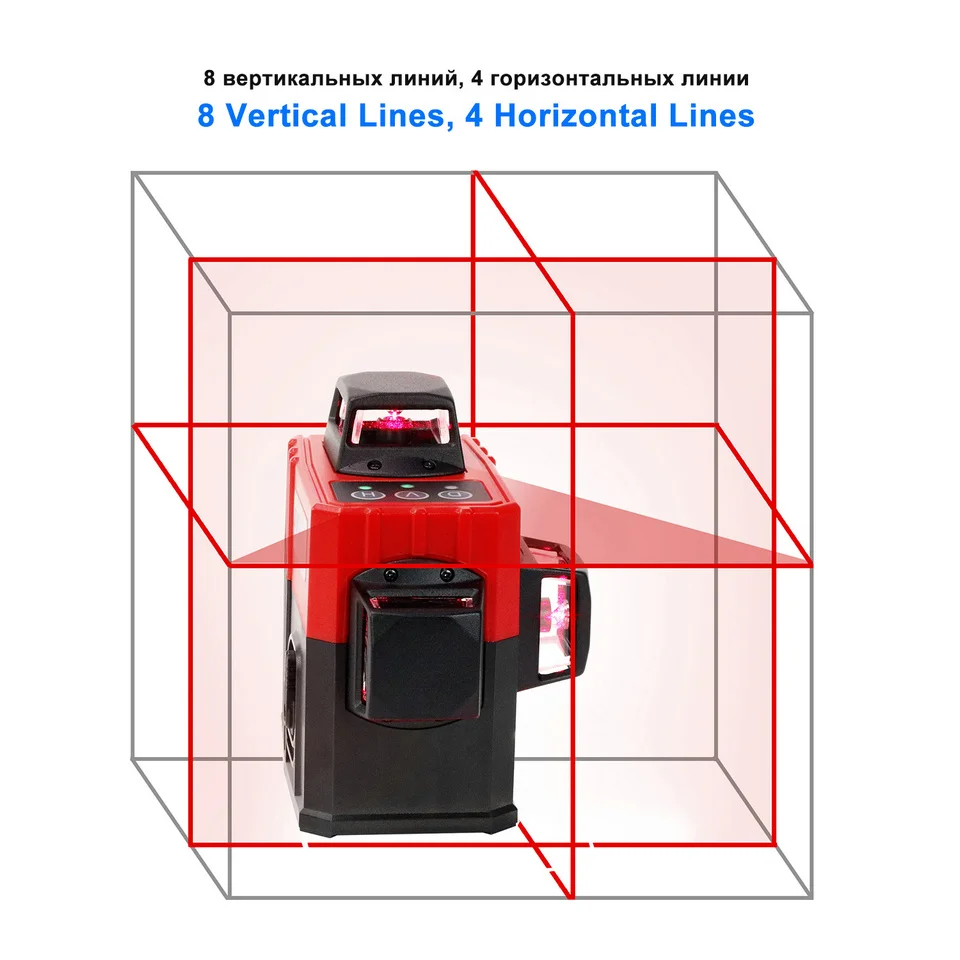

The 3D5 laser level has three laser windows, each window can launch 4 laser lines,totally 12 laser lines
( 8 Vertical Line, 4 Horizontal Line,4 laser lines combine to a plane).

Wavelength:650nm<1mw
Laser class:II
Damping Type: Magnetic
Leveling duration:≤4s
Laser Level Line Width at 10M: 3.5mm
Horizontal,Vertical Precision: ±2 mm @ 10M
Orthotropic accuracy:90° ± 30"
Leveling Range:  ±4(Degree)

Working time: 3 Hrs /1pcs 3.7v/800mah battery
Working Temperature: -10 to +50 (Centigrade)
Storage Temperature: -20 to +60 (Centigrade)


KaiTian Laser Level Packing List
Choose different 3D Laser Level Green product models in Color

4 types of power supply
3.7V  800mAh Rechargeable Lithium Battery x 1pcs,
1.5V  AA batteries ,
1.2V  AA batteries ,
AC 100-240v Adapter





Kaitian Laser Level MR3D5 view





Kaitian Laser Level MR3D5A width





Kaitian Laser Level MR3D5A light le 2







tilt function

Kaitian Laser Level MR3D5M OUTDOOR



work with receiver 2

Kaitian Laser Level MR3D5M receiver LE















Kaitian Laser Level MR3D5A 23







Kaitian Laser Level MR3D5A 03Kaitian Laser Level MR3D5A 08

Kaitian Laser Level MR3D5M close wall 2







Kaitian Laser Level MR3D5A 04

Kaitian Laser Level MR3D5M base



Kaitian Laser Level MR3D5L 360 bracket



Kaitian Laser Level T1503 min maxKaitian Laser Level T1503 VIEWKaitian Laser Level T1503 weight



Kaitian Nivel Laser 12 Lines Laser Level 3D  Model KT-MR3D5LAR / KT-MR3D5LADR



Kaitian Nivel Laser 12 Lines Laser Level 3D Special Features


The automatic leveling mode
Once the pendulum is in unlocked condition,the instrument will be self-leveling within 4 degrees, when the
unit is using out of the leveling range,laser lines and main indicator will keep flashing.

Kaitian Nivel Laser 12 Lines Laser Level 3D Tilt  Function
When the instrument is in not working status, with lock turned to OFF, press the control panel of the
D key and hold on 3 seconds, when the  D key are flashing,then it goes into Arbitrary angle of a
straight line mode; Press the D key again,the mode will be canceled.
To operate in this slash function, you need an angle adjusted bracket to work with.

Kaitian Nivel Laser 12 Lines Laser Level 3D  Receiver function
In indoor working radius is 10 meters,if use outdoor receiver working radius can be up to 50 meters.
Note:This link does not include outdoor receiver.
In indoor working radius is 10 meters,if use outdoor receiver working radius can be up to 50 meters.
Outdoor Receiver  frequency   within 4.5 ~ 10 KHZ


Kaitian Nivel Laser 12 Lines Laser Level 3D Working Advice
Always use the centre of the lasser line for marking.The width of the laser line changes with the distance.

Safety Notes
The measuring tool produces laser class 2 laser radiation according to IEC 60825-1.This can lead to persons
being blinded,do not direct the laser beam at persons or animals and do not stare into the direct or
reflected laser beam yourself.
Do not let children use the 3D laser level measuring tool without supervision.
Do not operate the measuring tool in explosive environments,such as in the presence of flammabel liquids,
gases or duxts.

Kaitian Nivel Laser 12 Lines Laser Level 3D Application Area
Home improvement,detection and location,lofts and elevations, and all other interior and exterior (with optional
receiver or detector)Construction and layout.

Thank you for choose Kaitian Nivel Laser 12 Lines Laser Level 3D 360 Rotary Horizontal Vertical Magnetic Bracket construction tools 3D Level 12 Lines
